Led Linear Light Exc U22nab0 - China

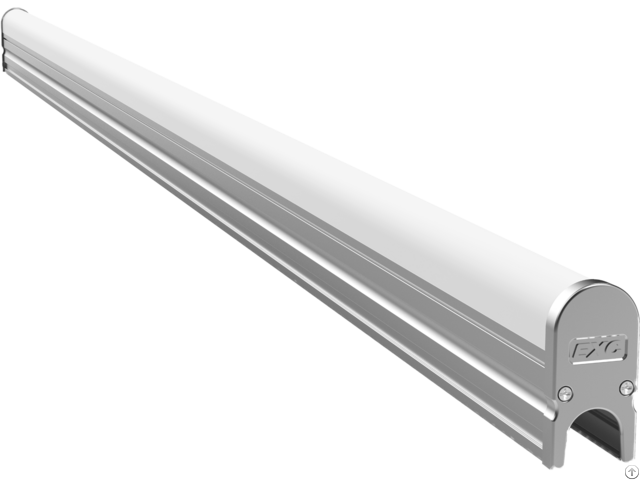

Description EXC-U22NAB0 full-color series consists of full-color SMD linear lights equipped with a narrow aluminum-profile housing and specially designed by EXC for outdoor landscape lighting.

Each strip includes 8 pixels, and each pixel can realize 65536 grades gray scale changing; featuring simple and reliable installation, they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting, and small-range wall washing.

Features

1 - Only 22mm width, very compact design.

2 - The newest generation technology: DMX512 parallel bus design

3 - Full-sealed filling waterproof design by German imported glue

4 - Aluminum alloy lamp body with low thermal resistance path heat dissipation design

5 - Outdoor lightning protection and electrostatic discharge (ESD) protection design Basic Specifications

Color Range: RGB/RGBW/W

Working Voltage: DC24V

Max.

Power Consumption: 9W/12W/15W/18 W

Light Source: 36/48/60 pcs LEDs

LED chip Brand: Optional(Cree, OSRAM, Lumileds, Epistar, etc.

)

CRI: 80

Control: DMX512, ON/OFF

Segment: 1/6/8/10

Source Life: 50, 000 h

Housing: High strength aluminum alloy

Cover: PC(Transparent, Opal)

Weight: 0.82Kg

Working Temperature: -40°C to 60°C

Storage Temperature: -40°C to 70°C

Protection Rating: IP66

Efficiency flux 40LM/W(White), 20LM/W(RGB), 30LM/W(RGBW), milky diffuser(decrease 30%-50%)

Beam Angle: ≥110°

Company Contact:

• Posted By: Shenzhen EXC-LED Technology Co., Ltd.

• Phone: 15707493001

• Address: 101, Building 1, EXC Industrial Park, No.589 Kenong Road, Tangjia Community, Fenghuang Street, Guang, shenzhen , guangdong , China

• Email:

• Website: https://www.exclighting.com/

• Business Description: Shenzhen EXC-LED Technology Co., Ltd. was founded in 2009, is a set of LED application product design, research and development, production, sales, service in one of the high-tech joint-stock enterprises.

  Existing employees of nearly 800 people, more than 100 R&D personnel, with nearly 100,000 square meters of intelligent production and manufacturing base, registered capital of 22 million US dollars, the company has gathered a group of domestic and foreign first-class technical experts, has a strong LED high-end product research and development, manufacturing capabilities, has more than 50 patents, including control system core patents and software copyright.

  Products are exported to Southeast Asia, the Middle East, Europe, America and other more than 80 countries and regions.
