Led Grille Downlight Rc - China

LED Grille Downlight RC White LED Grille Downlight White LED Grille Downlight manufacturer

Model: JST-RC

Wattage: 12W-70W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: ＞90

Finish Color: White/Black/Customized


Beam Angle: 15°/24°/36°/60°

Size: 160mm/175mm/330mm

Cutout: 150mm/160mm/320*160mm

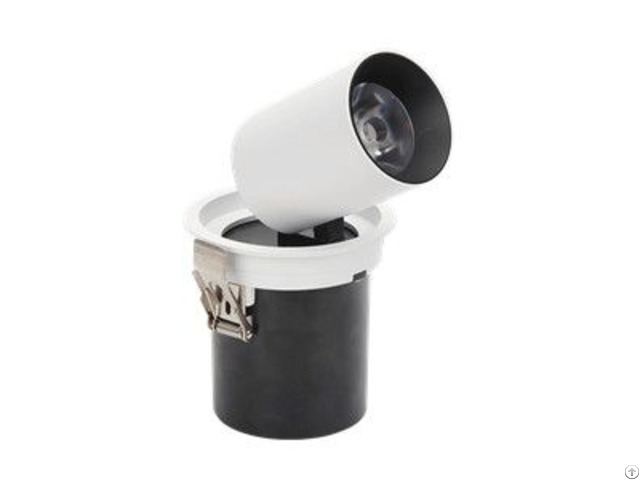

LED Grille Downlight Description

New grille spot light die-casting high-rank aluminum integrated heat sink.

international top COB CITIZEN chip, high quality driver, combined with JST exclusive optical system of lens and, Standard driver originally researched and developed by JST, stable specifications, glare-free, good heat sink, brilliant quality, more than 50, 000 hours life span.

custom color LED Grille Downlight Advantages

1 - Patent design with multi-funcations, Hiding light body and Rotable 360°

2 - Optic lens stay in deep of the housing to perfermance unti-glare UGR<19

3 - High Lighting perfermance to save 60%-80% energy

4 - Improved prdocution visibility through High color rendering CRI>90

5 - Best same color perfermance at same CCT because the COB SDCM<3

6 - Long life time CITIZEN COB to meet 5 years warranty

7 - Different installation ways for option: Recessed and Surfacemounted

8 - Different Control system: Triac dimming, 1-10V dimming, Dali dimming, App dimming

Long lifespan LED Grille Downlight Specification

Model Power CRI CCT PF Current Input Voltage Beam Angle Dimension Cutout

JST-RC 12W >80/90 2700K-5000K >0.90 0.30A AC220-240V 15°/24°/36°/60° L98*H120mm 90mm

JST-RC 15W >80/90 2700K-5000K >0.90 0.35A AC220-240V 15°/24°/36°/60° L98*H120mm 90mm

JST-RC 20W >80/90 2700K-5000K >0.90 0.50A AC220-240V 15°/24°/36°/60° L130*H135mm 120mm

JST-RC 25W >80/90 2700K-5000K >0.90 0.60A AC220-240V 15°/24°/36°/60° L130*H135mm 120mm

JST-RC 30W >80/90 2700K-5000K >0.90 0.75A AC220-240V 15°/24°/36°/60° L160*H155mm 140mm

JST-RC 35W >80/90 2700K-5000K >0.90 0.90A AC220-240V 15°/24°/36°/60° L160*H155mm 140mm

JST-RC 12W*2/3 >80/90 2700K-5000K >0.90 0.30A*2/3 AC220-240V 15°/24°/36°/60° L185*W100*H120mm 175*90mm

JST-RC 15W*2/3 >80/90 2700K-5000K >0.90 0.35A*2/3 AC220-240V 15°/24°/36°/60° L185*W100*H120mm 175*90mm

JST-RC 20W*2/3 >80/90 2700K-5000K >0.90 0.50A*2/3 AC220-240V 15°/24°/36°/60° L240*W130*H135mm 230*120mm

JST-RC 25W*2/3 >80/90 2700K-5000K >0.90 0.60A*2/3 AC220-240V 15°/24°/36°/60° L240*W130*H135mm 230*120mm

Application

Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.
