Led Downlight Dtz Series - China

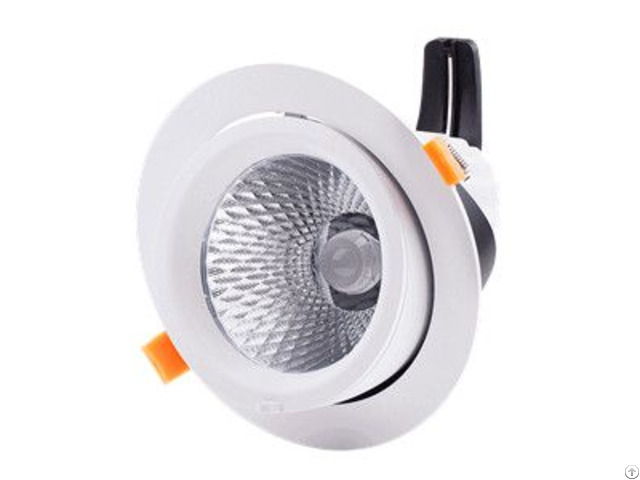

LED Downlight DTZ Series dimmable LED Downlight China high efficiency LED Downlight

Model: JST-DTZ

Wattage: 10W-50W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: ＞90

Finish Color: White/Black/Customized


Beam Angle: 45°/90°

Diameter: 90mm-190mm

Cutout: 75mm-170mm

Description

DTZ Series are originally researched and developed by JST, pure aluminum housing, anodized finish, use PC reflector, reflective rate>95％high grade glass, transparent rate>93％, top quality CITIZEN COB, with OSRAM/LIFUD/TRIDONIC exterior driver, dimmable, good heat sink, brilliant quality, more than 50, 000 hours life span.

Black LED Downlight Advantages

1 - High Ra>90, high efficiency, high luminosisy, SDCM<3, make surroundings of high-quality illumination

2 - Glare-fee design, perfect light spot with precise cast.

3 - Easy to installation.

Specification

Model Power CRI CCT PF Current Input Voltage Beam Angle Dimension Cutout

JST-DTZ 10W >80/90 2700K-5000K >0.65 0.25A AC220-240V 15/24/36/60 D140*H115mm 125mm

JST-DTZ 15W >80/90 2700K-5000K >0.90 0.35A AC220-240V 15/24/36/60 D140*H115mm 125mm

JST-DTZ 25W >80/90 2700K-5000K >0.90 0.60A AC220-240V 15/24/36/60 D140*H115mm 125mm

JST-DTZ 30W >80/90 2700K-5000K >0.90 0.75A AC220-240V 15/24/36/60 D160*H130mm 145mm

JST-DTZ 35W >80/90 2700K-5000K >0.90 0.85A AC220-240V 15/24/36/60 D160*H130mm 145mm

JST-DTZ 45W >80/90 2700K-5000K >0.90 1.10A AC220-240V 15/24/36/60 D190*H160mm 170mm

JST-DTZ 50W >80/90 2700K-5000K >0.90 1.25A AC220-240V 15/24/36/60 D190*H160mm 170mm Application

Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.

Our products such as customized LED downlight, LED track light and LED grille downlight have various certificates, such as CE, ROHS, SAA, CB, TUV ect.
