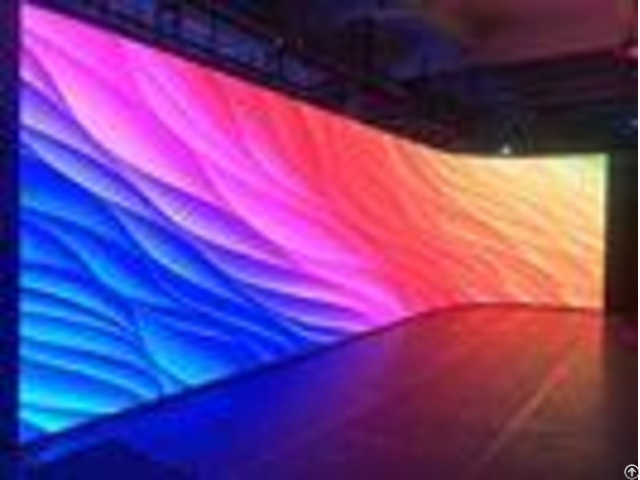

Full Color Smd P3 91 Curved Led Screen 500 500mm Die Casting Aluminum Cabinet - China

Full color SMD indoor p3.91 rental led curve display for stage/Events Product Description Super slim P3.9 rental indoor led display, P3.91 smd led video display big screen wall for stage 1)High cost performance.

2) Good Consistency and High resolution.

3)High brightness and refresh rate .

4)Good after-sale services.

5)In the premise of guaranteeing quality, our company sales at low profit and warranty for 3 years.

Appication The Indoor LED Video Wall is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, etc.

Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.

Parameter - - - -

List | Item | Description | 1 | Pixel Pitch | 3.91mm | 2 | Module Size | 250*250mm | 3 | Pixel Density | 65536/s.q.m | 4 | Pixel composition | 1R1G1B | 5 | LED Type | SMD2121 | 6 | Module Resolution | 64*64 | 7 | Power Consumption of Module | 80W | 8 | The Optimum Viewing Distance | 4~50m | 9 | The Optimum Viewing Angle | 140/120 | 10 | Maximum Power Consumption | 1300W/s.q.m | 11 | Standard Cabinet Size | 500*500mm | 12 | Cabinet Resolution | 128*128 | 12 | Cabinet Weight | 8Kg | 14 | Driving IC | MBI5124GP | 15 | Driving Method | 1/16 Scan Constant Current Driving | 16 | Frame Frequency | 60Hz/s | 17 | Refresh Rate | 1920Hz/s | 18 | White Balance

Luminance(CD/s.q.m) | 1500cd/s.q.m | 19 | Operating Environment Temperature | -2060 Optional | 20 | Operating Voltage | 220V10% or 110V10% | 21 | Grey Scale | Display Colors65.7trillion color(Synchronized) | 22 | Brightness Adjustment | 1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically | 23 | Input Signal | RF, S-Video RF, S-Video, RGB, RGBHV, YUV etc.

| 24 | Control System | PC+ DVI display card+ sent card+ receive card | 25 | Average No Failure Time | 5000 hours | 26 | Life-span | 100000 hours | 27 | Out-of Control rate | 0.0001 | 28 | Transmitting Distance | Internet cable: < 100m | - - - - Trade Terms

1 - Packing: Anti-shaking wooden cabinet /Air flight case/carton

2 - Shipping port: Shenzhen.

China

3 - Shipping freights are quoted according to your requests

4 - Delivery time: 5-25 working days

5 - 2 years warranty, lifelong maintaining.

After-sale service

1 - Our products have two years warranty service, lifetime free maintenance and upgrade.

2 - Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3 - We offered training to our customer who includes operating and maintenance of our products.

4 - In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

5 - Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6 - If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours.

In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
