Energy Saving Indoor Small Pitch Led Display Smd1010 Full Color With Thin Cabinet - China

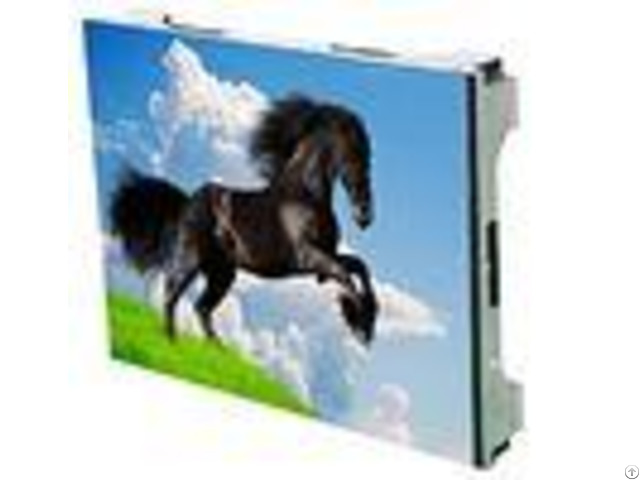

Energy Saving Indoor Small Pitch LED Display SMD1010 Full Color With Thin Cabinet Brief Decription Cabinet size : 400 300 66mm Pixel Pitch : P1.92, P1.78, P1.56, P1.25 Brightness : 800-1200nits Weight : 6KG Features : 1 .

seamless assembling 2 .

Brightness automatical adjustment 3 .

High-definition visual effect 4 .

High thermal conductivity Alloy cabinet, better heat dissipation 5 .

Fan-free design, energy saving, more stable, 6 .

Approved by RoHS certification, Lead-free, enviromental design 7 .

Ergonomic handle design, convenient handling 8 .

High performance and adjustable side lock 9 .

Diversification assembling Technical Parameters - - - -

P1.56 Indoor High Definition Advertising LED Display | S/N | Item | Technical Parameters | LED Parameters | 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle | 2 | Red LED | SMD1010 | 100-120mcd | 620-625nm | 140/60 | 3 | Green LED | SMD1010 | 320-400mcd | 520-525nm | 140/60 | 4 | Blue LED | SMD1010 | 70-90mcd | 470-475nm | 140/60 | Module Specifications | 1 | Pixel Pitch | 1.56mm | 2 | Pixel Configuration | SMD3in1 | 3 | Module Resolution | 128x192 pixels | 4 | Module Pixles | 24, 576 pixels | 5 | Module Size | 200x300mm | Cabinet Specifications | 1 | Cabinet Size(W X H X D) | 400x300mm | 2 | Cabinet Resolution(dot) | 256 x 192 pixels | 3 | Module Quanity (pcs) | 2pcs | 4 | Cabinet Pixels | 49, 152 pixels | 5 | Pixel Density | 409600 pixels/m2 | 6 | Cabinet Materials | Die Casting Aluminum | Whole Screen Specifications | 1 | Screen Brightness | 1000cd/m2 | 2 | Driving Method | 1/32 scan | 3 | Mini Viewing Distance | 2m | 4 | Max.

Power Consumption | 800W / m2 | 5 | Average Power Consumption | 400W / m2 | 6 | Gray Level | 8bits input, 4096 levels(212) | 7 | Display Color | 16M | 8 | Frame Frequency | 60Hz | 9 | Refresh Frequency | 2000Hz | 10 | Uninterrupted Working Hours | 72 hours | 11 | Screen Life-span | 100, 000 hours | 12 | MTBF | 5, 000 hours | 13 | Discrete Blind Spot Rate | <1/10000 | 14 | Continuous Blind Spot Rate | None | 15 | Blind Spot Rate | <1/10000 | 16 | Screen Plainness | <1mm | 17 | Power Supply Mode | AC22010% 50Hz/AC11010% 60Hz | 18 | Environment Temperature & Humidity | Temperature: -20 Celsius~+60 Celsius Humidity: 10%~90% RH | 19 | Control Mode | Synchronous display with control PC by DVI | 20 | Control System | DVI video card + full color control card + fiber system( optional) | 21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

| 22 | Interface | Standard Ethernet | 23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km, internet cable <100m | - - - - Application Traffic Sign, Electricity, water conservation industry, security industry, military affairs conference system, broadcasting industry.

Schematic Diagram
