Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.

user can choose 1~5 output channels, 4096 Grey Scales.

It can be used as DMX512 master or as DMX decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.

Specifications

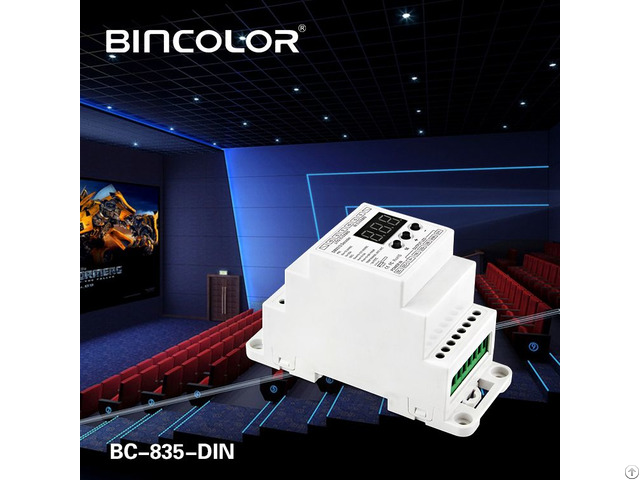

Model： 5CH Constant Voltage decoder

Input voltage：DC12V-DC24V

Max load current： 5CH×5A

Max Output Power： 300W(12V)/600W(24V)

Grey Scale： 4096 levels×5

Input Signal：DMX512/1990

Output Signal： Constant Voltage PWM

Decode Channel： 5CH

DMX512 socket： Terminal Block

Dimension： L111×W46×H66(mm)

Weight (G.

W) ：140g

Basic Features

1 - Automatically adapts input voltage DC12V-24V.

2 - Input standard DMX512 signal; 3-digital-display shows DMX address code.

3 - 1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.

4 - DMX Master mode, slave mode available.

5 - Built-in 8 color changing modes and 10 speed scales.

6 - Indicator of the DMX512 signal receiving status.

7 - Power loss memory function.

8 - Wrong wiring protection at DMX port, over current protection and short circuit protection.

9 - The DIN rail style design facilitates the installation of large-scale projects.
