Anti Thunder Adss Fiber Optic Cable With Double Sheath Kevlar Yarn Reinforce - China
price: check with company for price
escription: Product Name: ADSS All Dielectric Self-supporting Aerial Cable Model: ADSS Application: Erect on the same pole with power line in new and old power line.
A long span Areas of strong electric field, multi-thunder, etc Features: Small cable Dia, light weight, 1, 000m span, low attached load on tower.
Tension strength is over 90KN.
Non-metal structure, good insulation, anti-thunder.
Fine production technology, even force for aramid fiber, with superior stress flexibility.
Anti electro-corrosion.
Adapt for bad climate.
May construct without power cut, a power line failure doesnt influence cables normal transfer.
loose cover GYTA cable core, non-metallic core reinforced.
Tension units are elastic modulus aramid fiber.
Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) 25KV/m.

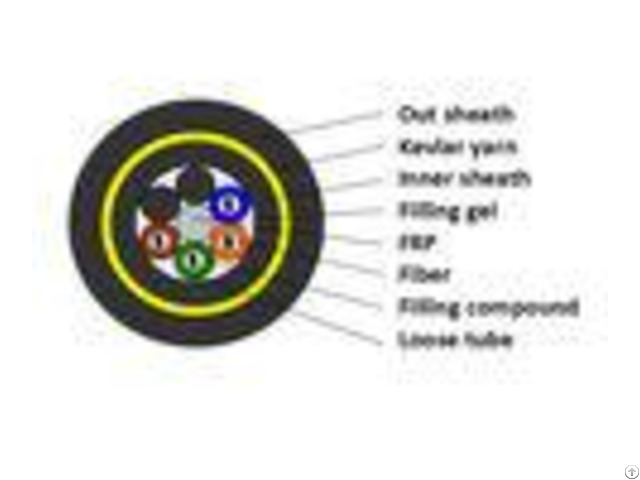

- - - - ADSS with PE Sheath (Parts) | Structure drawing | Order Type Model | ADSS-PE 24 M15.5/ A | ADSS-PE48 M17.7 / C | ADSS-PE72 M21.2 / D | | Fiber count | 24fiber | 48fiber | 72fiber | Size of tube | 2.1mm | 2.6mm | 3.0mm | Cable diameter | 13.4mm | 14.9mm | 16.4mm | Cable weight | 139kg/km | 172kg/km | 209kg/km | RTS | 38.8kN | 44.3kN | 56.6kN | Linear expansion coefficient | 2.210-6/ | 2.010-6/ | 1.810-6/ | Youngs modulus | 16.5kN/mm2 | 17.5kN/mm2 | 18.6kN/mm2 | - - - - - - - - ADSS with AT Sheath (parts) | Structure drawing | Order Type Model | ADSS-AT 24 M14 / A | ADSS-AT48M15.2 / C | ADSS-AT72 M21.2 / D | | Fiber count | 24fiber | 48fiber | 72fiber | Size of tube | 2.1mm | 2.6mm | 3.0mm | Cable diameter | 13.2mm | 14.3mm | 16.3mm | Cable weight | 146kg/km | 169kg/km | 220kg/km | RTS | 35kN | 37.9kN | 52.9kN | Linear expansion coefficient | 4.510-6/ | 4.810-6/ | 3.610-6/ | Youngs modulus | 15.5kN/mm2 | 14.9kN/mm2 | 17.9kN/mm2 | - - - - Order Information: # Cable type: SM or MM( Sinlge-mode: yellow; Multi-mode: orange;options available for other colours # Fiber Type: SM(G652D, G655C, G657A1, G657A2, G657B3) MM(OM1, OM2, OM3, OM4) # Fiber count: 2-144 # Cable length: 2000M/Drum( customized, MOQ=2000M) # Cable Jacket: Outer sheath Black Tag: [Fiber optic cable], [fiber optics cable connectors]
Company Contact:
- Posted By: Wuhan Horizon Technology Co., Ltd.
- Phone: 86-27-88712630
- Address: Add: No.1 Daxueyuan Rd., Optics Valley, Eastlake Hi-Tech District, Wuhan, China, Wuhan , Hubei , China
- Email:
Published date: March 28, 2018
- Business Description: We believe that customer's satisfaction has always been our guiding principle and our aim is to provide the best quality of products with fair prices.
Trust us, we can be your reliable partner and supplier in telecommunication field.
