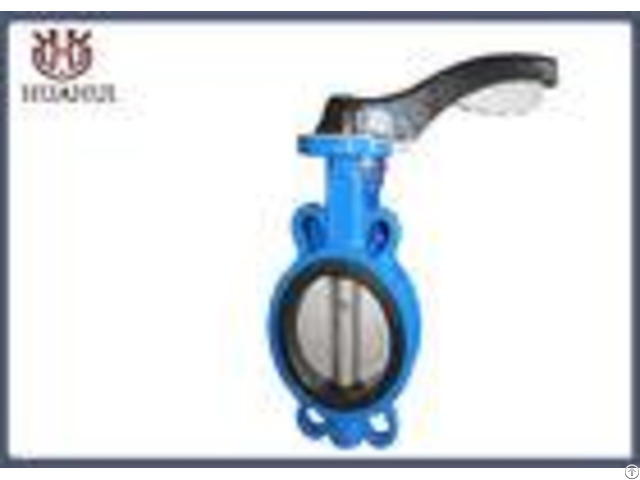

Rubber Seated Wafer Butterfly Valve Cast Iron Dn50 With Handle Operation - China
price: check with company for price
DN50-DN300mm Rubber seated cast iron wafer butterfly Valve handle operation Butterfly valve, lever (gear) operator, resilient seated, centerline design Design to comply with MSS SP-67, BS5155 and API 609 Compatible with ANSI, DIN, BS, JIS flanges Size range: 1-1/2" to 48" DN40-DN1200 handles (1-1/2inches to 12 inches), manual gear operators (1-1/2inches to 48 inches) Pressure: PN0.6 to PN1.6MPa PN2.5 MPa Temperature ratings: -35 to 135C Viton Seat with High Temperautre to 400C Connection: wafer type, lug type, u-section Flanged type - - - - Material list | Part name | Materials | Body | Cast iron: ASTM A126CL.
B, DIN1691 GG25, EN 1561 EN-GIL-200 | Ductile iron: ASTM A53665-45-12, DIN 1693 GGG40, EN1563 EN-GJS-200 | Stainless steel: ASTM A351 CF8, CF8M, CF3 | Carbon steel: ASTM A216 WCB | Stem | Stainless steel: ASTM A276 type 316, 400, ASTM A582 type 416 | Taper pin | Stainless steel: ASTM A276 type 304, type316, EN 14501 | Seat | NBR, EPDM, Neoprene, viton | Disc | Ductile cast iron (nickel plated): ASTM A53665-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10 | O-ring | NBR, EPDM, Neoprene, Viton | Bushing | PIPE Nylon lubricated bronze | Key | Carbon steel | Test | Working pressure | PN10, PN16, PN25 | Shell pressure | 1.5Mpa, 2.4Mpa, 27.5Mpa | Seat pressure | 1.1Mpa, 1.76Mpa, 37.5Mpa | - - - -
Company Contact:
- Posted By: HEBEI HUAHUI VALVE COMPANY
- Phone: 86-317-4583000
- Address: No.4 Road of Botou Industrial Zone, Cangzhou City,Hebei Province,China, Cangzhou , Hebei , China
- Email:
Published date: February 6, 2018
- Business Description: We have two engineers to solve the guests technical problem.
At the same time, we have 65 workshop colleagues who can process the products in the first time and give the best delivery time.
For the qulity control, we have three people to check the qulity before the goods ship to our customer.
