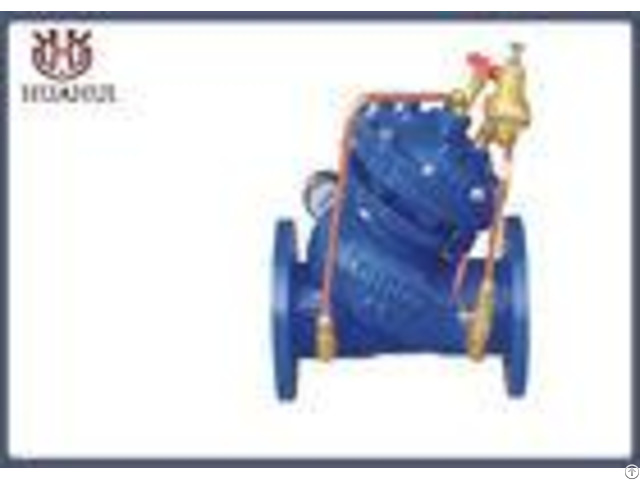

Pressure Reducing Stainless Steel Control Valve Double Flange Corrosion Proof - China
price: check with company for price
YX741X pressure reducing valve hydraulic control valve double flange DI body 1 - Main material - - - - Body | Fine iron | Film | Acrylic cord lining NBR | Stem | Stainless steel 2CR13 | Pad | NBR | Spring | Stainless steel 2CR13 | Pilot valve | Brass | - - - - 2 - Technical parameters - - - - 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | Valve length L: | 235 | 235 | 250 | 285 | 365 | 365 | 455 | 580 | 650 | 800 | Valve height H: | 395 | 395 | 415 | 455 | 485 | 495 | 555 | 670 | 725 | 755 | Valve width K: | 235 | 235 | 235 | 265 | 290 | 300 | 340 | 460 | 500 | 580 | Temperature | 80C | For media | Water, corrosive fluid with low gas | Performance Testing | SealPN=1.1MPA/1.76MPA | StrengthPN=1.5MPA/2.4MPA | Working pressure | 1/8-7/8Source pressure (the lowest 0.05MPA) | | Connection Standard | GB4216-1992 | - - - -
Company Contact:
- Posted By: HEBEI HUAHUI VALVE COMPANY
- Phone: 86-317-4583000
- Address: No.4 Road of Botou Industrial Zone, Cangzhou City,Hebei Province,China, Cangzhou , Hebei , China
- Email:
Published date: February 7, 2018
- Business Description: We have two engineers to solve the guests technical problem.
At the same time, we have 65 workshop colleagues who can process the products in the first time and give the best delivery time.
For the qulity control, we have three people to check the qulity before the goods ship to our customer.
