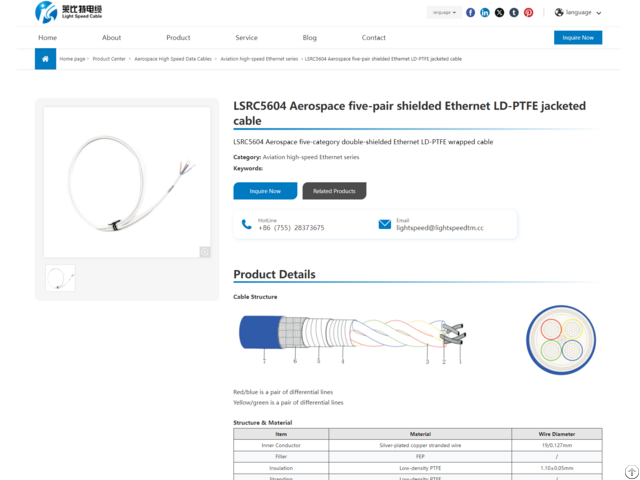

Lsrc5604 Aerospace Five Pair Shielded Ethernet Ld Ptfe Jacketed Cable - China

LSRC5604 Aerospace five-category double-shielded Ethernet LD-PTFE wrapped cable Category: Aviation high-speed Ethernet series Structure & Material Item Material Wire Diameter Inner Conductor Silver-plated copper stranded wire 19/0.127mm Filler FEP / Insulation Low-density PTFE 1.10±0.05mm Stranding Low-density PTFE / Inner Shield Double-sided aluminum foil / Outer Shield Tin-plated copper 3.50±0.10mm Jacket White FEP 4.00±0.15mm Electrical & Physical Properties Impedance 100±15(Ohm)

Capacitance ≤45(pf/m)

Delay 4.30(ns/m)

Conductor to Conductor 1.5(KV/DC)

Conductor to Shield 1.0(KV/DC)

Minimum Bending Radius 40 mm

Insulation Resistance 1500(MΩ.

Km)

Operating Temperature Range -55~165(℃)

Weight 35 (g/m) Frequency Attenuation db/100m Return Loss db Near-end Crosstalk Near-end Crosstalk Power Sum Equal-Level Far-end Crosstalk Equal-Level Far-end Crosstalk Power Sum MHz IL RL NEXT PS NEXT EL FEXT PS EL FEXT 4 4.5 23.0 56.3 53.3 52.0 49.0 8 6.9 24.5 51.8 48.8 45.9 42.9 10 7.8 25.0 50.3 47.3 44.0 41.0 16 9.9 25.0 47.2 44.2 39.3 36.9 20 11.1 25.0 45.8 42.8 38.0 35.0 25 12.5 24.2 44.3 41.3 36.0 33.0 31.25 14.1 23.3 42.8 39.9 31.1 31.1 62.5 20.4 20.7 38.4 35.4 25.1 25.1 100 26.4 19.0 35.3 32.3 21.0 21.0
