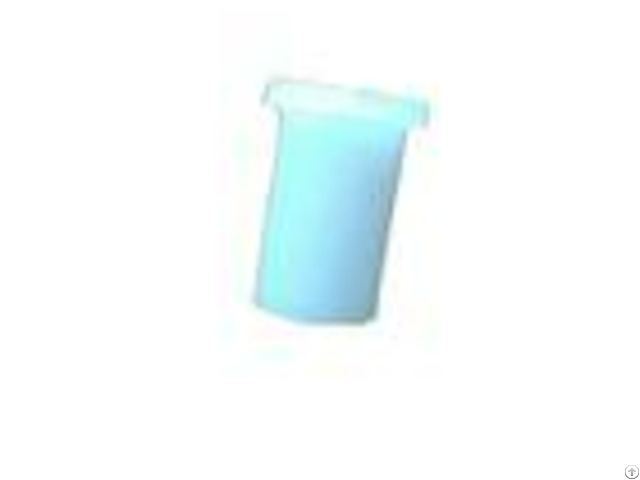

Fixing Studs Milk White Sign Making Tools Nylon Clear Cap For Smooth Wall - China

Letter Sign Fixing Signboard Fixing Sign Fixing Studs Replace Standoffs Design Product Information This Sign Fixing Studs is also called as Male and Female sign fixing studs, letter fastenings, letter fasteners, or letter and sign fixings, Compared with the stainless steel or aluminum or golden bolts and nuts for fixing, this Alkathene Male and Female sign fixing studs has a incomparable advantage, that is its free-nail for the signage substrates surface panel! For example, for any type of the signage materials except the clear substrates like acrylic or ps sheet or other mirror glass materials, usually the corners bolts and nuts always make the advertisement image be disturbed because of bolts passing through and color, while this Alkathene Male and Female Fastenings Sets really an indispensable support as it just supports on the back side by additional adhesiveness, even no need to make holes on the surface panels, thus changing of the advertisement media without moving of this back supporting studs is absolutely possible here.

Any flat-cut, built-up PS Sheet, Acrylic Sheet, PVC Foam Boards, Aluminum Composite Panel etc, will adhere to this Alkathene Male and Female sign fixing studs by any acknowledged acrylic cements or solvents that provide a chemical bond.

The supporting pole is secured to background with Diameter 3.5MM screw for the small and Diameter 6MM screw for the large ones.

This Alkathene Male and Female sign fixing studs let you fixing the Cap tightly with the letters by glue first, then making drilling into the background exactly by the Poles layout on the paper.

All large size and luxury Sign trays do need these fixings which are hidden behind the panel offering a contemporary and sleek finish, the sign fixing studs offering a great alternative to flat fascia panels allowing your sign to stand out, increase depth and dimension to your sign.

Features 1 - Nylon Clear Cap, Polypropylene White Cup 2 - Industry standard 3 - Cost effective compared with stainless steel bolts and nuts 4 - Hidden itself and supporting signs well on the backside 5 - Suitable for any smooth wall 6 - Not suitable for yorkstone or other irregular background 7 - Let sign panels outstanding 3D and eye catching 8 - Fixing signs with High quality and long lasting 9 - Makes Sign panel with Contemporary finish while no visible fixings Material Data Small Letter Fastener Sizes A - Top Cap Head Diameter 16mm B - Total Depth of body and head 15mm C - Bottom Cup Base Diameter 11mm D- 100 caps/bag, 100 cups/bag, then complete into 100sets/bag.

E- 100bags/ctn.

F- Item no.

could be 1115 G- tapping screw siTotal Depth of body and headze: 3.5MM Diameter*20MM Length H- tapping screw packing: 100pcs/bag, separate packing.

Large Letter Fastener Sizes A - Top Cap Head Diameter 20mm B - Total Depth of body and head 28mm C - Bottom Cup Base Diameter 16mm D- 50caps/bag, 50 cups/bag, then complete into 50sets/bag.

E- 50bags/ctn.

F- Item no.

could be 1628 G- tapping screw size: 6.0MM Diameter*25MM Length H- tapping screw packing: 100pcs/bag, separate packing.

Tips # # Bespoke screw could be supplied if you want to locate the sign panels on metal or other harden backgrounds; # Packing right now is 100sets/bag, 100bags/ctn for small; 50sets/bag, 50bags/ctn for big.

Bespoke packing qty also acceptable.
