Adss Suspension Clamp - China

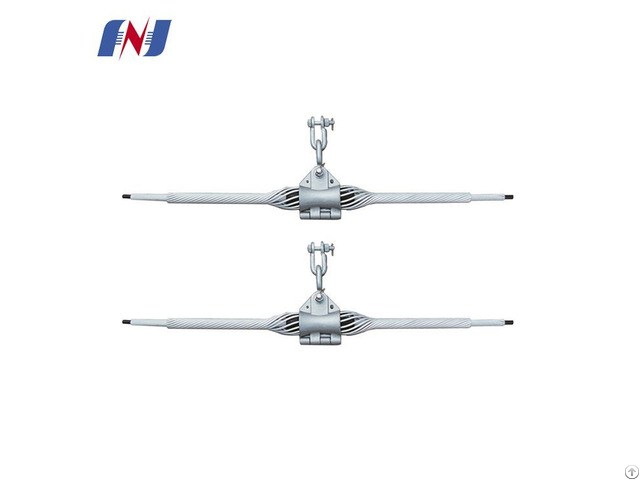

ADSS Preformed Suspension Clamp

The base is attached by a rear hinge for quick and easy installation of ADSS cables

Cushioned pad made of UV resistant neoprene sleeve insert to gently hold the ADSS cable in place

Includes stainless steel bolts and locking washers for locking clamps

ADSS Suspension Clamp

Suspension clamps are also called fixture suspension or suspension fittings.

According to the application, the suspension clamps are divided into ABC optical cable suspension clamps, ADSS optical cable suspension clamps, and overhead line suspension clamps.

ADSS Optical Cable Suspension Clamp

Suspension cleats for ADSS cables are also known as prefabricated suspension cleats.

Prefabricated catenary clamps that function the same as ordinary catenary clamps are designed to suspend conductors or ground wires in a vertical direction.

Huaneng prefabricated suspension clamps are suitable for high voltage above 220kv.

Unique features of prefabricated suspension clips: Effective protection of conductors

Avoiding Electricity Waste Due to Corona

easy installation

Prefabricated suspension clamps are designed to protect ADSS (All Dielectric Self Supporting) cables from sloshing caused by wind currents.

Suspended clamps are widely used in transmission lines, towers or power distribution systems.

The distance between the two towers is called the span.

For short spans, prefabricated suspension clamps with O-rings are often used.

This kind of suspension clamp has the characteristics of lightest weight, convenient installation, and can protect ADSS optical cable more effectively.

For mid-span and long-span, there is also a prefabricated suspension clamp that is aluminum-clad.

The Armor Clip Suspension connects with U-Clips to hang cables.

Aluminum-clad suspension clamps support and protect ADSS fiber optic cables from bending damage.

According to the span, the short span adopts single suspension clamp, and the long span adopts double suspension clamp.

Composition: inner pre-twisted wire, the outer pre-twisted wire, rubber insert, cast aluminum shells, right-angle shackle, U-type shackle.

Purposes: supporting cable, make the ADSS hang on the tower.
