Weather Proof High Bay Lighting - China

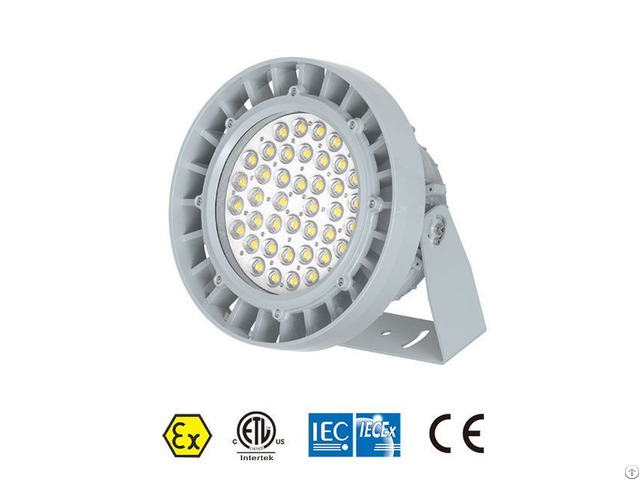

Weather Proof High Bay Lighting EX03 Series 200W

Product Highlight

Versatile Applications: The Weather Proof High Bay Lighting EX-03 series is suitable for both low and high bay lighting applications, offering versatility for a wide range of industrial environments such as warehouses, manufacturing facilities, and hazardous locations.

Enhanced Safety: With its explosion-proof design, the EX-03 series prioritizes safety in potentially hazardous environments, providing reliable illumination without compromising on security.

Sustainable Lighting Solution: By achieving a 60, 000-hour rated lifespan with 80% lumen retention, these lights offer a sustainable lighting solution, reducing the need for frequent replacements and minimizing environmental impact.

Easy Installation: Designed for user convenience, the EX-03 series features a user-friendly installation process, allowing for quick and hassle-free setup in industrial settings.

Customization Options: SAFER-Ex offers customization options for the Explosion-Proof Led Lights, allowing customers to tailor the lighting fixtures to their specific requirements, including wattage, beam angle, and color temperature, ensuring optimal performance for their unique applications.

Technical

Rated Power 25W 50W 75W 100W 150W 200W

Light efficacy 148lm/W 148lm/W 152lm/W 152lm/W 152lm/W 149lm/W

Luminous Flux 3700lm 7400lm 11400 lm 15200 lm 22800 lm 29800 lm

Fixture Weight 4.2kgs 4.2kgs 5.45kgs 5.45kgs 11.25kgs 11.25kgs

Input Voltage 12-24Vac, 100-240Vac, 12-36Vdc, 140-250Vdc for option

Surge Protection Standard DM4kV, (Optional Uc: 264Vac Up≤1600V In: 10kA Imax: 15kA)

Housing Material Copper free Die-Casting aluminum with expoxy powder coating finished

Lens Material Tempered Glass / Polycarbonate

Cable Entry M20, M25, NPT 1/2", NPT3/4"

Ingress Protection IP66

Impact Rating IK10 (20J)

Ambient Temperature -40℃ ~+70℃

Explosion Proof High/Low Bay Lighting is an indispensable solution for industrial environments requiring durable, energy-efficient, and high-performing lighting.

From warehouses to mining light operations, these fixtures provide unparalleled performance, safety, and cost savings.

Contact us to enhance operational efficiency while ensuring compliance with industry standards.

Company Contact:

• Posted By: NINGBO SAFER ELECTRIC CO., LTD

• Phone: +86 574 62226513

• Address: No.173 Shunyu West Road, Yuyao City, Ningbo , Zhejiang , China

• Email:

• Website: https://www.safer-ex.com/

• Business Description: SAFER-Ex is a region leader of high performance explosion-Proof lighting and apparatus manufacturer established in July 2011 in Ningbo, China.

  It is one of the earliest manufacturers in China passed UL & CSA certifications of Explosion-Proof Lights.

  We have an exclusive agent in North America and have been cooperating for 12 years.

  Besides, the company also obtained IECEx (International) & ATEX (EU) certifications.

  All explosion-proof led lights are designed and manufactured in strict accordance with North American UL844, ATEX, IECEx explosion-proof certification standards.
