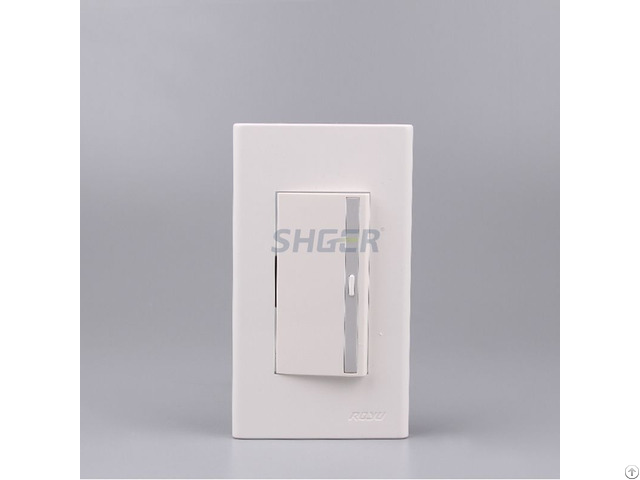

Wd501 120 Size 1 Gang Lighting Switch - China

Using quick connection terminal technology, Technology, Wiring does not require any tools, just insert the hard wire into the wiring hole as required, and the double-stage pressure spring can be formed to press tightly on the top and bite the wire below.

Even if The wiring state is uniform and neat, which ensures safety and greatly reduces the construction time.

Out of the wire, it can also be reconnected.

Improve the reliability of construction.

To remove the cable, insert the screwdriver into the cable removal hole and pull it out.

The plastic part of the functional part is all made of high-quality polycarbonate, excellent heat and pressure resistance, solid and non-flammable, and does not deform in case of heat.

The conductive parts of the switch are made of brass with high conductivity, the silver points are made of silver oxidation insulating contact with melting resistance, and the coil spring of the structure is forced to open and close to achieve higher conductive capacity and longer operation The service life is more than 40, 000 times.

As China's leading switch and socket supplier, Sager focuses on innovation and technological improvement.

Through continuous investment in R&D, we continue to launch products that meet market demand.

Our production base is equipped with advanced manufacturing equipment and automated production lines to ensure efficient, high-quality production.

At the same time, we strictly follow the ISO9001 quality management system to ensure that every product meets international standards.

Technical Parameters

Description WD501 120 size 1 gang lighting switch

Panel Material ABS material imported

Inside Material All copper H62;Qsn6.5-0.1, silver contact AgCd15

Power/Voltage 10A, 250V

Wiring Method screw connection

Colour white, screwm Ivory or other colour as customization

Lifetime 8 years

Package 1pcs/plastic bag, 10pcs/inner colour box, 100PCS/CTN

Delivery time 35 days after getting confirmed order

Payment TT, LC

Sea port Ningbo/Shanghai

MOQ 1000PCS Outline size 70*120mm

Installation size 83.5

Material PC

Copper QSn5.6-0.1 H62 Hpb59 SWITCH SPECIFICATION

Lifetime ≥40000

Heat-resistant 100℃/1h

Insulation Resistance ≥5MΩ

Damp Resistance 48h>5MΩ

Temperature Raise ≤45K

Earthing Provision ≤0.05MΩ
