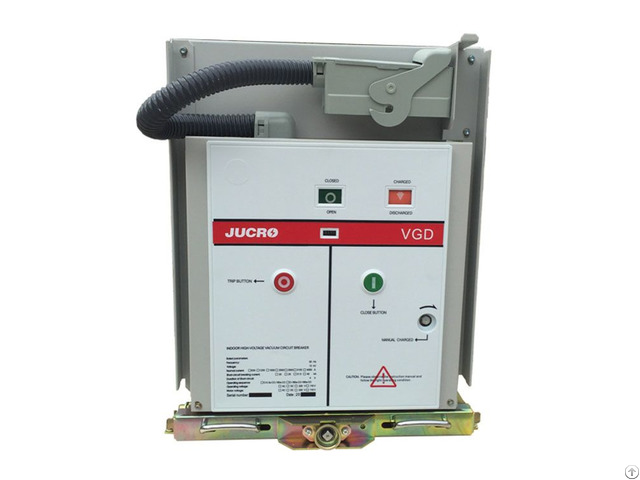

Ved 12 Indoor High Voltage Vacuum Circuit Breaker - China
price: 1022.00 Dollar US$
1．General
VS1 12KV vacuum circuit breaker VCB
HVD1-12(VS1-12) type indoor AC HV vacuum circuit breaker VCB (hereinafter referred to as circuit breaker) are suitable for 12kV air-insulated indoor switchgears, used as protection and control unit of power equipment of industrial& mining enterprise.
Due to the super excellence, it is especially for location where requires the frequent operation of rated working current or multi breaking short circuit current.
The circuit breaker adopts the integrated design of operating mechanism and circuit breaker body, servers as not only fixed installation, but also the handcart unit through equipping with a special propelling mechanism.
2 - Service conditions 3.1 Environment temperature: -15degree~+40 degree;
3.2 Environment humidity: Daily average relative humidity: <95%, monthly average relative humidity: <90%; Daily average saturated vapor pressure: <2.2×10-3Mpa , monthly average saturated vapor pressure: <1.8×10-3Mpa ;
3.3 Altitude: Not exceed 1000m;
3.4 Earthquake intensity: Not exceed°ree;
3.5 Service location: No water, flammable or explosive matter, chemical corrosive gas or drastic vibration.
Company Contact:
- Posted By: Hubei Jucro Electric CO., LTD.
- Phone: 18162974229
- Address: 4th Road Xiannv, Zhijiang City, Hubei Province, China, YIchang City, Hubei , China
- Email:
- Website: https://www.jucro.com
Published date: July 22, 2019
- Business Description: Hubei Jucro Electric CO., LTD. is a private enterprise that produces and exports high voltage electrical equipment.
The main products are: vacuum contactors, vacuum circuit breakers, vacuum interrupters and related accessories.
The product rated voltage range covers 660KV/1.14KV/3.6KV/7.2KV/ 24KV/40.5KV.
The rated current of the product ranges from 125A to 4000A.
