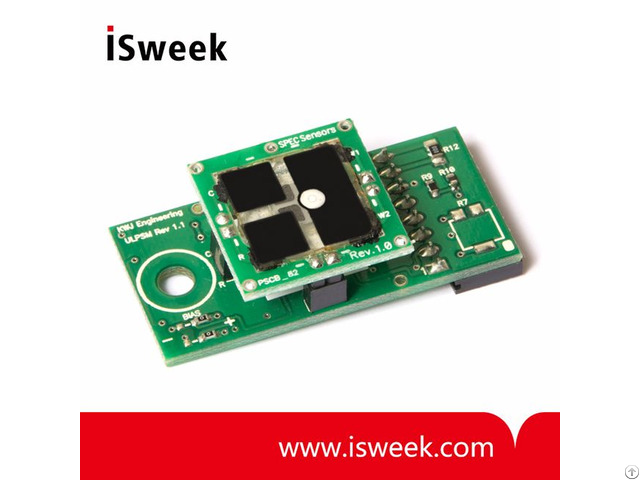

Ulpsm O3 968 005 Ultra Low Power Analog Ozone Sensor Module - China
price: check with company for price
ULPSM-O3 968-005 Ultra-Low Power Analog O3 Sensor Module DESCRIPTION
Quickly integrate Ozone sensing into your system with very low power consumption and a simple analog sensor signal output.
/
The ULPSM converts the Ozone sensor’s linear current signal output to a linear voltage signal, while maintaining the sensor at its ideal biased operation settings.
/
ULPSM-O3 968-005 Ultra-Low Power Analog O3 Sensor Module BENEFITS
• 0 to 3 V Analog Signal Output
• Low Power Consumption < 45 µ W
• Fast Response
• On-board Temperature Sensor
• Easy Sensor Replacement
• Standard 8-pin connector
/
ULPSM-O3 968-005 Ultra-Low Power Analog O3 Sensor Module APPLICATIONS
• Fixed Industrial Safety Monitoring
• Portable Industrial Safety Monitoring
• Portable Personal Safety Monitor
• Indoor Air Quality Monitoring
• Outdoor Air Quality Monitoring
• Air Purification Control
/
ULPSM-O3 968-005 Ultra-Low Power Analog O3 Sensor Module PERFORMANCE CHARACTERISTICS
• Measurement Range: 0 to 20 ppm • Lower Detection Limit: 0.3 ppm • Resolution: 0.15 ppm • Accuracy: < ± 2 % of reading • Response Time T90: < 30 seconds • Power-On Stabilization Time: 60 minutes recommended
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: October 31, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
