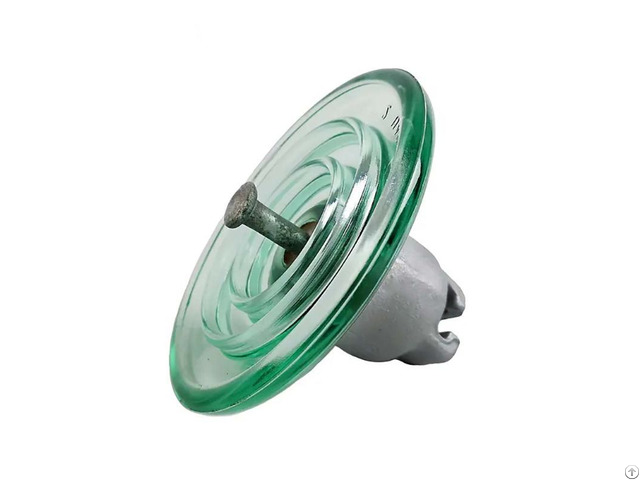

U40b 40kn Suspension Disc Shaped Glass Insulator - China
price: contact company for price
U40B is a glass suspension disc insulator designed in accordance with IEC standards, with a mechanical failure load of 40 kN.
It is widely used in Central Asia and Russia.
Product Parameters
Type Nominal diameter (mm) Structural height (mm) Creepage distance (mm) Connection Mark (mm) Rated mechanical failure load(kN) Power frequency wet withstand voltage (kV) Lightning impulse withstand voltage (kV) Weight of a single insulator(kg)
U40B/110 178 110 185 11 40 25 50 2.1
U40BP/110 178 110 300 11 40 24
Company Contact:
- Phone: +86 152 3226 1796
- Address: No. 3838, Tianwei West Road, Daqidian Town,Jingxiu District, Baoding , Hebei , China
- Email:
- Website: https://www.zhexielectricpower.com/
Published date: December 1, 2025
- Business Description: Baoding Zhexi Electric Power Technology Co., Ltd. is a comprehensive enterprise focusing on the design, development, production, trade and service of electric power equipment.
The company is headquartered in Baoding, Hebei, a famous historical and cultural city in China and China's Electric Valley.
The company's main products are: glass insulators, composite insulators, lightning arresters, galvanized steel strands, solar photovoltaic lines, plastic-coated binding wires, line hardware, etc.
Our company's products are sold well in North America, Latin America, Central Asia, Southeast Asia, Africa, the Middle East, etc.
We have established long-term and stable cooperative relations with many international customers.
We welcome domestic and foreign customers to negotiate business, establish good cooperative relations, mutual benefit and common development.
