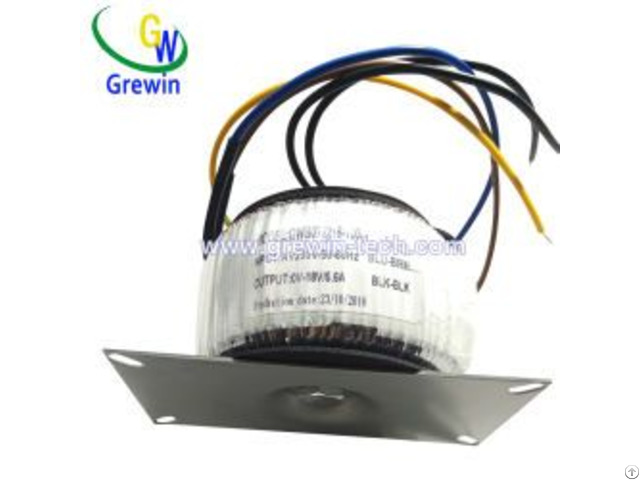

Toroidal Power Transformer For Amplifiers - China

1 - Installation:

Horizontal (non-conventional-type base plate), sunk, side type, and bridge.

2 - Application:

Especially low-hum and low-dispersing construction

Low-level of induction

High-grade design casing possible

Statically shield winding and magnetical shield winding optional.

3 - Equipment:

Over 50 sets toroidal/annular/ ring coil winding machines, 3 EI type transformer lines, 2 sets of vacuum annealing furnaces, A set of nitrogen and hydrogen production equipment.

4 - Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

5 - Certificate

The certificate of our transformer has CE CQC RoHS UL

6 - Note

The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products by customer design.

And the specification is for reference, if has the change further, please take the material object as the standard.

20VA Φ 60 H25 82 10mA 1.20V 0.45kgs 30VA Φ 65 H35 84 10mA 1.20 0.50kgs 50VA Φ 70 H40 88 20mA 1.15 1.30kgs 100VA Φ 85 H60 90 30mA 1.15 1.50kgs 120VA Φ 90 H75 93 40mA 1.10 2.00kgs 200VA Φ 110 H80 93 100mA 1.10 2.80kgs 300VA Φ 120 H80 94 150mA 1.08 3.50kgs 500VA Φ 130 H80 94 150mA 1.08 5.00kgs 800VA Φ 140 H85 94 200mA 1.08 6.50kgs 1000VA Φ 140 H85 95 300mA 1.05 8.50kgs 1500VA Φ 160 H90 95 400mA 1.05 12.0kgs 2000VA Φ 180 H90 95 400mA 1.05 15.0kgs 4000VA Φ 220 H95 95 500mA 1.05 20.0kgs 6000VA Φ 250 H95 95 500mA 1.05 25.0kgs
