Tocon C1 Uvc Photodetector With Integrated Amplifier - China
price: check with company for price
TOCON_C1

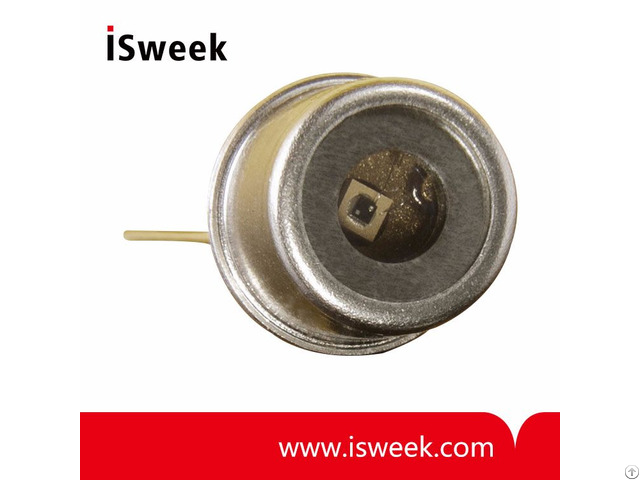

UVC-only SiC based UV photodetector with integrated amplifier
/
1 - Properties of the TOCON_C1 UV Photodetector
• UVC-only SiC based UV photodetector in TO5 housing
• 0 … 5 V voltage output
• peak wavelength at 275 nm
• max.
radiation (saturation limit) at 275 nm is 135 nW/cm2, minimum radiation (resolution limit) is 14 pW/cm2
• Applications: UVA blind fire detection
/
2 - TOCON_C1 UV Photodetector Specifications
/
Spectral Characteristics Typical Responsivity at Wavelength 274 nm (Smax): 21mV/nW/cm2
Wavelength of max.
Spectral Responsivity: 275 nm
Responsivity Range (S=0.1*Smax): 225 ~ 287nm
/
General Characteristics (T=25°C, Vsupply=+5 V) Supply Voltage (VSupply): 2.5 ~ 5V
Saturation Voltage: VSupply - 5% V
Dark Offset Voltage : 50µV
Temperature Coefficient at Peak: < -0.3%/K
Current Consumption: 150µA
Bandwidth (-3 dB): 15Hz
Risetime (10-90%): 0.075s
(other risetimes on request) /
Maximum Ratings Operating Temperature: -25 ~ +85°C
Storage Temperature: -40 ~ +100°C
Soldering Temperature (3s): 300°C
