Tocon B4 Uvb Uvc Photodetector With Integrated Amplifier - China
price: check with company for price

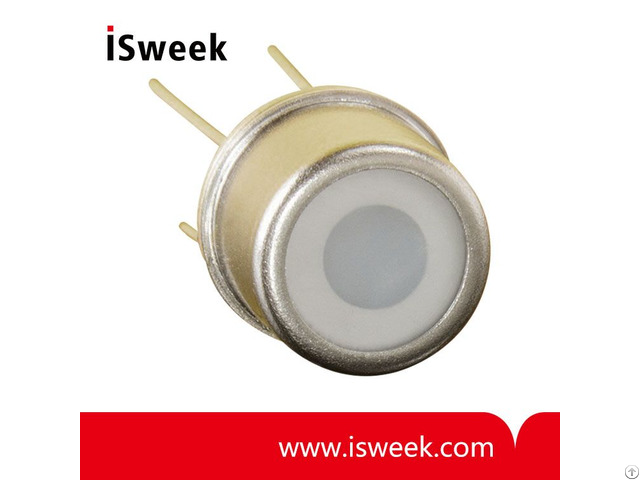

TOCON_B4
UVB+UVC SiC based UV photodetector with integrated amplifier
/
Properties of the TOCON_B4 UV Photodetector
• UVB+UVC SiC based UV photodetector in TO5 housing with diffusor
• spectral response compliant to CIE087
• 0 … 5 V voltage output
• peak wavelength at 280 nm
• max.
radiation (saturation limit) at peak is 7.5 μW/cm2
• Applications: UVB irradiation measurement
/
TOCON_B4 UV Photodetector Specifications
Typical Responsivity at Wavelength: 670 mV/nW/cm2
Wavelength of max.
Spectral Responsivity: 280nm
Responsivity Range: 243 ~ 303nm Supply Voltage: 2.5 ~ 5V
Dark Offset Voltage: 50µV
Temperature Coefficient at Peak: < -0.3%/K
Current Consumption: 150µA
Bandwidth (-3 dB): 15Hz
Risetime (10-90%): 0.182s Operating Temperature: -25 ~ +85°C
Storage Temperature: -40 ~ +100°C
Soldering Temperature (3s): 300°C
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: August 9, 2018
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
