Tg9xx8 Co2 Duct Transmitter With Temperature And Humidity Detection - China

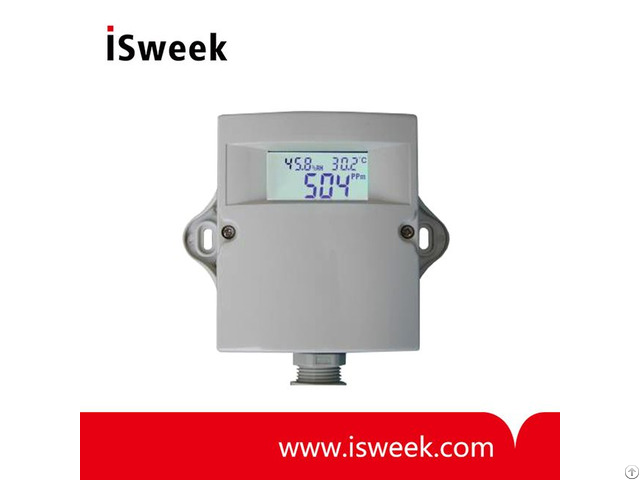

CO2 Duct Transmitter With Temperature and RH% Detection

Model: TG9xx8

/ • Real time detection carbon dioxide of the air duct • Detection high accuracy temperature and relative humidity • Smart sensor probe with extendable probe may be easily installed into any air duct • With the water-proof and porous film around the sensor probe • Up to 3xanalog linear outputs for measurements • Optional Modbus RS485 interface • With or without LCD display • CE-approval

/

TG9xx8 CO2 Duct Transmitter Features

• Designed for real time detecting carbon dioxide, temperature or relative humidity in air ducts.

• NDIR infrared CO2 sensor inside with special Self Calibration and up to 15 years’ lifetime.

It makes CO2 measurement more accurate and reliable.

• Combined temperature and humidity digital sensor provide a high accuracy measurement in full range.

• Provide up to 3 analog outputs (0~10VDC or 4~20mA or 0~5VDC) for CO2 temperature and relative humidity.

/

TG9xx8 CO2 Duct Transmitter Detection Focus

Carbon Dioxide (CO2)

Indoor CO2 level is a universal accepted parameter for the condition of indoor ventilation and air quality.

A time period can be preset from 1 to 24 hours, e.g. 5 hours, then the monitor can display CO2 average level during this period, which provides an objective and true data for the measurement of the air quality in a certain space.

• Non-dispersive infrared (NDIR) CO2 sensor with more than 10-year lifetime • ABC self-calibration technology guarantees reliable CO2 measurement • CO2 range: 0~2000ppm/0~5000ppm optional • Rapid response, high stability and consistency

/

Temperature and humidity

Combined digital temperature and humidity sensor with high accuracy and stability.

It also has compensation to CO2 and air quality which makes the measurements more accurate by minimizing environmental effects.

/

TG9xx8 CO2 Duct Transmitter Typical Applications

• Building management for office areas and residental

• Ventilation control system

/

TG9xx8 CO2 Duct Transmitter Specifications

• CO2 Measuring range​: 0~2000ppm/0~5000ppm optiona

• Temperature​ Measuring range​: 0°C~50°C (32°F~122°F) (default)​

• Relative humidity​ Measuring range: 0~100%RH​

• Power supply​: 24VAC/VDC​

• Consumption​: 3.5 W max.

; 2.5 W avg.

​

• Operation temperature: 0~50°C (32~122°F)

​• Operation humidity​: 0~95%RH, non condensing​

• Analog Outputs: 0~10VDC or 4~20mA or 0~5VDC
