Tcstx Menu Driven Loop Powered Toroidal Conductivity Transmitter - China

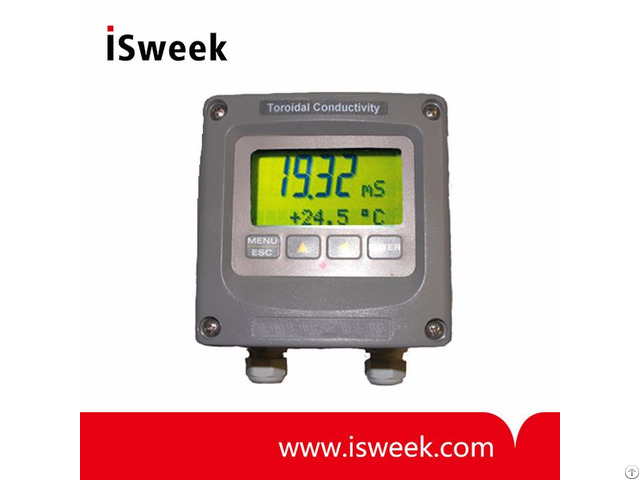

TCSTX - Menu Driven Loop-Powered Toroidal Conductivity Transmitter with 4-20mA Isolated Output and Local Display

/

TCSTX Toroidal Conductivity Transmitter Features

• 4-20mA isolated output, loop powered 16 - 35VDC

• Large dual segmented high content display indicates conductivity & process temperature simultaneously

• User-adjustable temperature compensation (0 - 4% / deg C)

• Four-key menu driven, field selectable ranges

• Adjustable zero and span

• Nema 4X enclosure with multiple mounting configurations /

TCSTX Toroidal Conductivity Transmitter Description

The model TCSTX is designed for on-line monitoring of water treatment applications and aggressive process chemicals.

This four-key menu driven transmitter with local display is ideally suited for applications where 4-20mA signals are required and reliable instrumentation is critical.

/

Key features include: the menu driven field selectable measuring ranges, large dual segment high content display, adjustable temperature compensation (% deg C), isolated output and reversible cell drive.

/

A NEMA 4X (IP66) enclosure provides excellent durability.

A variety of mounting choices are available for wall, panel, pipe or rail installation.

/

Pair the TCSTX with a TCS3020 toroidal sensor for troublefree service.

TCS3020 sensors are offered in Noryl construction and can be mounted in a custom CPVC flow cell (p/n: FC95C) for in-line use.

/

TCSTX Toroidal Conductivity Transmitter Specifications-Transmitte r

• Full Scale Range: 0-2000 mS - User selectable

• Sensitivity: 0.05% of span or 0.1uS

• Repeatability: 0.3% of span, or 0.1uS

• Non-Linearity: 0.3% of span or 0.1uS

• Operating Temperature: -20 to 60°C (-4 to 140°F)

• Operating Humidity: 0-95% R.H. non-condensing

• Power Requirement: 16-35 VDC (2-wire device)
