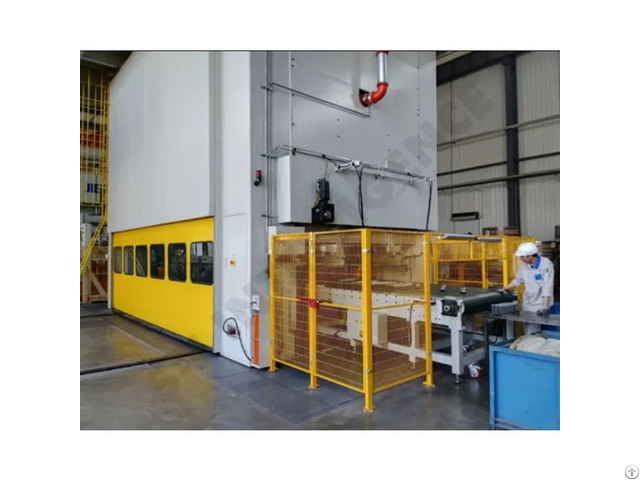

Stsp2 Type Servo Straight Side Double - China

STSP2 Type Servo Straight Side Double Points Press for Automotive Sectors

Shop S-T Intelligence's high-quality double-point servo presses, ideal for complex stamping and forming applications, with advanced designs that ensure consistent results and optimized production efficiency.

Advantages

Direct drive via servo motor, providing stamping energy in place of the flywheel for the press, eliminating clutches and brakes.

Fewer mechanical parts, less inertia of the transmission structure, lower noise level, simplified maintenance, and cheaper maintenance costs.

Precise control of the servo stamping process by arbitrarily setting and adjusting the servo motor speed.

Optimized stamping process curve by arbitrarily programming the operating speed, stroke position and pressure of the slide, greatly improving the accessibility and flexibility of production.

Full load operation while stamping at low slide speed (above 1 spm).

Reduced press working cycle time, enhanced production rate and production efficiency by increasing the speed of slide's return stroke.

Improvement of the accuracy and quality of stamped parts, minimization of the impact on the dies, extension of the dies' life time cycle, and reduction of the cost through utilization of low stamping stroke speed.

Efficient drive solution to reduce energy consumption.

Comprehensive energy management system, recycling of excess energy, and controlling instantaneous energy release during stamping.

Handwheel fine-tuning function, significantly reducing the time of tryout.

Same safety and logic control as mechanical press.

Features

Main Structure:

Separated welding combined body

Main Transmission Form:

Top drive, eccentric gear type double points servo press

Anti-Eccentric Load:

The eight-sided guide rail adjustment adopts a large point distance anti deviated load structure to ensure the precision of the slide during transfer stamping

Lubrication:

The main drive bearing part is lubricated with thin oil

Main Motor:

Low-speed high-torque water-cooled servo motor, ensuring reliable operation over extended periods

Operation Modes:

Multiple preset curve modes and free programming modes.

Including Crankshaft Mode, Coining Mode, Drawing Mode, Forging Mode, Heating in-die Mode, Precision Blanking Mode, Pendulum Mode, Free Programming Mode.

Company Contact:

• Posted By: Suzhou S-T Intelligence Technology Co., Ltd

• Phone: +86 400 800 6817

• Address: Building 6, Liangchuang Industrial Park, No.45 Dongfu Road, Suzhou , Jiangsu , China

• Email:

• Website: https://www.servopress.cc/

• Business Description: Suzhou S-T Intelligence Technology Co., Ltd. (hereinafter referred to as S-T Intelligence) was founded in May 2021, which is a key project introduced by Suzhou Industrial Park (SIP), a “Leading Intelligent Equipment Enterprise” in SIP (identified by SIP government), a council member of Jiangsu Intelligent Equipment Industry Alliance, and a council member of SIP Technology Innovation Alliance.

  S-T Intelligence offers one-stop complete servo stamping solutions to customers, ranging from servo presses, servo motors and servo drives and control systems with independent intellectual property rights, stamping process analysis, to stamping automation ancillary equipment.

  We have a strong R&D team, headed by senior engineers with extensive experience in research and development of servo press technology over many years.

  The core team comprises of 1 doctor, 4 masters and 6 senior engineers.

  S-T Intelligence has completely independent research and development capability in servo press and control system.

  For the servo press main transmission structure and key components, we have more than 30 patents, including 3 invention patents, 4 software copyrights.

  Our servo press technology is independent and controllable, with stable and reliable products.
