Standard Wireless Transmission Tilt Sensor - China

Introduction

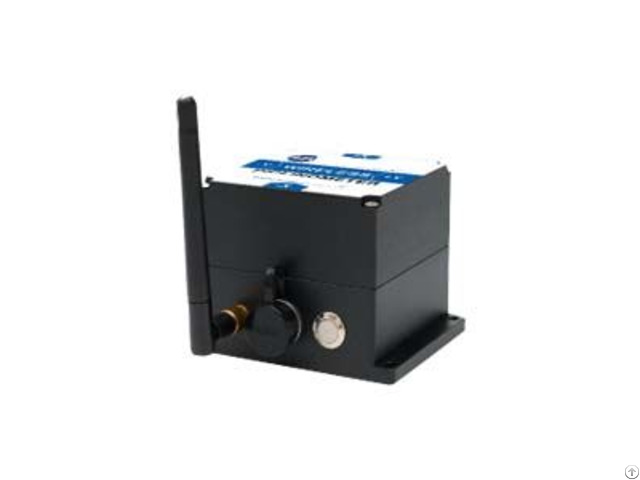

The ER-TS-42500 protocol is an ultra-low power, small volume, and high performance wireless tilt sensor for industrial applications where users have no power supply or real-time dynamic measurement of object attitude Angle.

Based on the Internet of Things technology Bluetooth, Zigbee (optional) wireless transmission technology, all internal circuits are optimized design, good long-term stability and small zero drift, can automatically enter low-power sleep mode, from the use of the environment to get rid of dependence; Industrial equipment wireless transmission distance: Bluetooth <50 meters, Zigbee<1600 meters.

Compact product structure, precision design, for temperature and linearity compensation again, integrated with short circuit, instant high pressure, polarity, surge and other comprehensive protection functions, Simple and easy to use, and Wireless digital signal transmission mode eliminates the tedious wiring brought by long cable transmission, noise interference; Industrial-grade design has extremely high measurement accuracy and anti-interference ability, Wireless sensor nodes can form huge wireless networks, Supporting thousands of monitoring points for simultaneous inclination monitoring, Supporting the professional computer software, no need for field survey, Real-time data measurement and record the state of the measured object; Suitable for the industrial site, Old dilapidated houses, ancient buildings, civil engineering, Various tower tilt deformation remote real-time monitoring and analysis of the needs of the safety monitoring system.

Product property

Biaxial monitoring (uniaxial optional)

Measurement Range: Double axis ±90°, single axis ±180° (360° optional)

Accuracy: 0.1°, resolution: 0.01°

Volume (94*74*64mm) (customizable)

Ultra-low power consumption

Built-in rechargeable lithium battery power supply

Wide temperature work: -40~ + 85℃

IP67, protection level Product application

Billboard monitoring

Bridge construction PTZ levelling

Ship attitude measurement

High speed rail roadbed tunnel monitoring

Satellite solar antenna positioning

Medical equipment

Various engineering machinery angle control
