Smd P8 Full Color Seaside Anti Corrosion Outdoor Fixed Led Screen - China

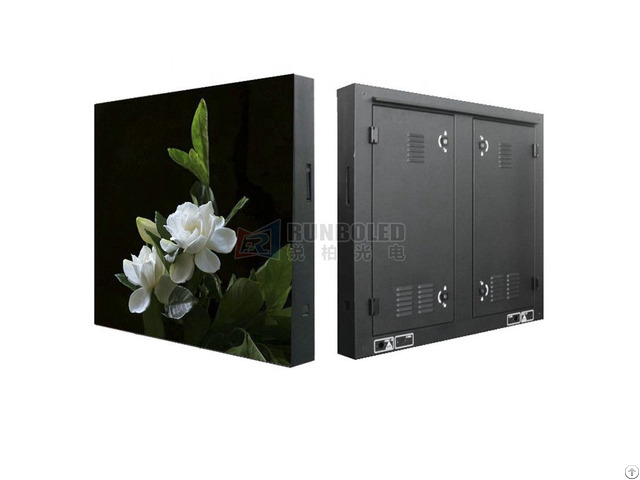

SMD P8 Full Color Seaside Anti-corrosion Outdoor Fixed LED Screen

Full Color Seaside LED Screen

P8 outdoor fixed led video wall, with it's back door and waterproof test, it can use for the high temperate application, with it's anti-corrosion test, can fix for the seaside for advertisement.

P3/P4/P5/P6/P8/P10 outdoor to meet your request.

Features of SMD P8 LED Screen:

1 - High brightness: With Kinglight and Nationstar, to ensure the led lamp quality and it’s brightness, which is up to 6000nits.

2 - Large viewing angle: Horizontal with 140degree, vertical with 120 degree, suit for outdoor large place environment.

3 - Iron cabinet and aluminum cabinet available according to the led screen installed environment, cabinet size can be customized.

4 - High refresh rate, up to 1920-3840Hz, to ensure the image quality.

5 - Hand holder and side lock design for the led cabinet, easily to carry the led cabinet and assemble them one by one.

6 - High heat dissipation: With two or four fans to fix in the back door, keep the led cabinet can be used in the high temperature application.

7 - Front service & rear service are available, can fix in any places.

8 - Long life-span up to 2-5 years.

Specification of P8 Outdoor LED Screen:

Parameter Technical of P8 Outdoor LED Video Wall Supplier

Item Model Parameter

LED Module Info.

Pixel Pitch P8 Outdoor Fixed LED Panel LED Lamp SMD3535 IC Driver MBI5124/MBI5051B/MBI5253 LED Module Size 320*160mm or 256*128mm LED Module Resolution 40*20dots or 32*16dots Color Temperature 3000-9000K Drive Mode 1/5 scan & 1/4 scan

LED Cabinet Info.

Cabinet Size 960*960*120mm or 1024*1024mm Cabinet Resolution 120*120dots or 128*64dots Cabinet Material Iron or Aluminum Cabinet LED Module Quantities 3*6=18pcs or 4*8=32pcs Cabinet Net Weight 45kg/pc or 48kg/pc IP Grade Waterproof IP65

LED Display Info.

Best Viewing Distance 8m-100m Viewing Angle H: 140°/ V: 120° Pixel Density 15625dots/㎡ Brightness 6000nits Max.

Power Consumption 747W/㎡ Ave.

Power Consumption 336W/㎡ Refresh Rate 1920Hz-3840H, can be adjusted

Control System Info.

Operating System WIN98/2000/NT/XP Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB Control System Linsn, Nova-star, Colorlight or as you required Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.

etc.

Frame Frequency 50Hz or 60Hz Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m

Operation Info.

Working Temperature -20℃--+60℃ Storage Temperature -30℃--+80℃ Input Voltage AC110V/AC220V Humidity Environment 10%-95% Lifespan 100, 000hours MTBF 10, 000hours Certificate CE, CCC, FCC, ROHS, ISO9001

Company Contact:

• Posted By: Shenzhen Runbo Led Co.,Ltd.

• Phone: 0755-23870558

• Address: 4th Building Baiwang Second Industrial Park Baimang Village, Xili, Nanshan, Shenzhen, shenzhen , Guandong , China

• Email:

• Website: https://www.runboledscreen.com/

• Business Description: Shenzhen Runbo Led Co.,Limited was established in 2013, is a reliable manufacturer in production, R&D, sales in China, specialized in high quality, high refresh outdoor & indoor led video visual screen, control system, video processor and so on.

  After 6 years development, we now become a leading led screen supplier in China, now our factory equipped with modern automatic assembly line, with Sony high-speed placement machine, YAMAHA high-speed SMT machine, full automatic solder paste printing machine and a group of professional production equipment, which is to keep the quality and provide the led cabinet to the customers with a short time after order confirmation.

  We have a series of full-color LED Display products, including led indoor full color led screen with P1.2/P1.5/P1.6/P1.8/P1.9/ P2/P2.5/P2.6/P2.9/P3/P3.9 1/P4/P4.8/P5/P6/P7.62/P10 and outdoor led video visual display with P3/P3.91/P4.

  /P4.81/P5/P6/ P8/P10, also including with transparent led screen with P3.91/P7.81/P10.4, tax led sign with P4/P5/P6, football stadium with P6/8P10/P12.5, Totem pole led display with P4/P5/P6/P8 for street advertising display, Indoor Poster standing led cabinet with P2/P2.5/P3, LED DJ booth, Flexible led module with P2/P2.5/P3/P4/P5 and so on.

  We here can supply all that you want.

  RUNBO LED focused on the led video wall products with professional assembling, aging test to keep the high quality before delivery to the customers.

  Therefore, all our led panel will have CE, ROHS, FCC certificates, our factory would have ISO9001/ISO2000 standard certificates.

  With these certificates, our products now export to many countries, including Malaysia, Korea, South Africa, Kenya, Nigeria, India, Cambodia, Bangladesh, Italy, Germany,Thailand, The United States, Vietnam, Chile, Peru, Spain, Argentina, Colombia, Mexico,Kuwait and so on.

  According to the led display business development, RUNBO LED now existed with sales department, engineering department, finance department, R&D department, logistics department, after-sales department, which is committed to provide a good service and good quality led panel to our customers.

  The advantages of our pantalla led:

  1 - Environmental protection.

  2 - QC to inspect the quality.

  3 - Energy-saving, low power consumption.

  4 - Real raw materials of led lamp, IC Driver, power supply to supply.

  5 - Long lifespan with 2 years warranty at least.

  6 - Safe and convenient assemble and dismantle.

  The advantages of R&D team:

  1 - Great LED engineer to research and design the led cabinets with new pixel pitch.

  2 - At least develop a new led screen during three months.

  3 - Will provide professional led media panel solution for the big project.

  The advantages of production workshop:

  1 - Obtain more than 20pcs high-speed SMT machines from Japan Sony and Yamaha.

  2 - Each steps from the LED Lamp-LED Module-LED Cabinet-LED Display will have professional workers to inspect and check and quality before delivery to the clients.

  3 - LED modules, will do aging test with 48 hours at least, led cabinets, will do aging test with 72 hours before delivery.

  For RUNBO LED, all what we done was to provide the best led billboard to our customers, which reduce the maintenance cost from the customers in the future.
