Single Multi Channel Optional Forj Fiber Optic Rotary Joint Connect Fibre Optics Slip Ring - China

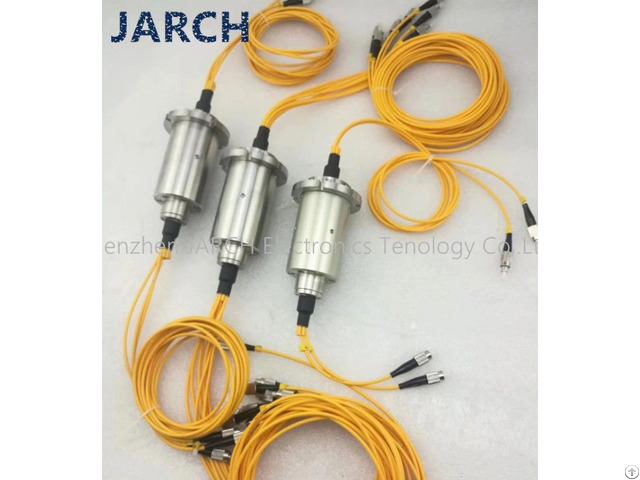

SIngle multi channel optional FORJ fiber optic rotary joint connect fiber rotary slip ring Product Description Fiber Optic Rotary Joints (FORJs) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data.

FORJs maintain the intrinsic advantages of fiber end to end.

Moog Components Group has been producing Fiber Optic Rotary Joints for over twenty years.

Single or Multi-Channel FORJ

FORJs are available in single and multi-channel options.

The most cost and size efficient options are the single and dual channel designs.

If more than two fibers are present in a system, multiplexing solutions are available to combine multiple channels onto one or two fibers to allow the use of a one or two channel FORJ.

Wavelength range 650-1650 nm Insertion loss ≤2 dB (typical: <0.5 dB)

Insertion loss ripple <+/-0.25 dB Return loss (SM) ≥40 dB

Maximum speed 1, 000 rpm Pulling strength 10 N (900 um buffer)

Start up torque <0.01 Nm Estimated life cycle 200-400 million revolutions

Optical power handling 23 dBm Working temperature -40°C to 85 °C

Storage temperature -50°C to 85 C°C Package style Pigtails on both ends

Housing material Stainless steel Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)

Connector types FC, SC, ST, SMA, or LC Dimensions 6.8 mm dia.

x 28 mm length

Weight 10 g IP rating IP 68 for all models, IP66 available

Vibration MIL-STD-167-1A Mechanical shock MIL-STD-810G If you have any questions, please contact us without any hesitation.

Shenzhen JARCH Electronics Technology Co., Ltd. Main Item list: slip ring, rotary union, fiber optic rotary joint(FORJ), hose reel/cable reel, carbon brush, brush holder.

Customer Service: ATTN: Ms.

Kris Yao E-mail: kris at szjarch.

cn Phone&WhatsApp: 86-139 29708571 Skype/Kakao: krisyao313 Wechat: laoyao313 QQ: 3003854385

Company Contact:

• Posted By: Shenzhen JARCH Electronics Technology Co.,Ltd.

• Phone: 13929708571

• Address: Unit C,GuangFa Industrial Park,Luotian Village,Songgang Town,Bao'an, Shenzhen , Guangdong , China

• Email:

• Website: https://www.throughboreslipring.com

• Business Description: Shenzhen JARCH Electronics Technology Co.,Ltd.is a professional manufacturer and designer of slip rings & rotary joints,founded in 1998,located in Baoan,Shenzhen,with more than 80 employees and 1000 m2 plant.

  We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,Beihang University,etc), and own a skilled management team.

  To create the brand and do famous brand,we carry out strict performance.

  Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction.

  Our main products have fiber optic rotary joint /cable reel/hose reel/carbon brush/ Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc

  Our products are sold to more than thirty provinces in China and exported to more than 38 countries.

  Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.

  OEM and ODM are highly welcome!
