Single Energy Low Price X Ray Baggage Scanner For Shopping Malls Hotels Subways Church Etc - China

Single energy low price X-Ray Baggage Scanner for shopping malls, hotels, subways, church etc.

AT5030A X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination.

It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.

Model Number AT5030A General information: # Tunnel Size: 500mm300mm # Conveyor Speed: 0.22m/s # Conveyor height : 668.5mm # Conveyor Max Load: 60kg # X ray Dose per inspection <0.1.25Sv # Wire Resolution: 38AWG typical # Spatial resolution Level: dia1.0mm, Vertical: dia1.0mm # Penetration: 4-6mm steel # Penetration Resolution: guarantee 32AWG # Film Safety : Guarantee ASA/ISO1600 Film # X-ray Leakage: <0.4 Sv/h (at a distance of 5cm From external housing) X Ray generator # Anode Voltage: 80kv # Anode power: 0.3mA # Generate angle: 80 degree upward # Brand: SAFEWAY( own made ) # Generate direct: from bottom to top # Cooling / Duty Cycle: Oil Cooling /100% Operating Environment: # Operation temperature/Humidity: 5-40/10%-95%(non-condensi ng) # Storage Temperature/Humidity: -20to 60/ 5%-95%(non-condensing) # Operation Power: 220VAC(10%)503Hz (Optional: 100VAC, 110VAC, 120VAC, 200VAC) # Power Consumption: 1.0KW (max), 0.7KW(working) # Noise: <58db # Dimension Size # Dimensions (LWH) : 1660mm x746mm x1165 mm # X Ray Scanner N.

Weight: 250Kg # G.

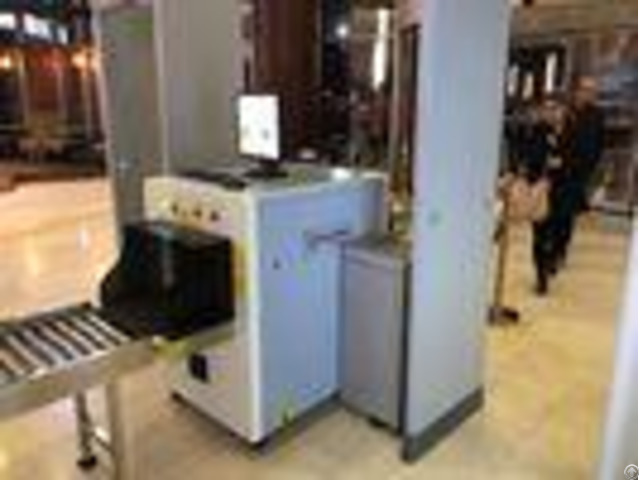

Weight: 320KG # Packing Volume: 2.35CBM Below are the installation photos for Safeway X-Ray Baggage Scanners in a shopping mall
