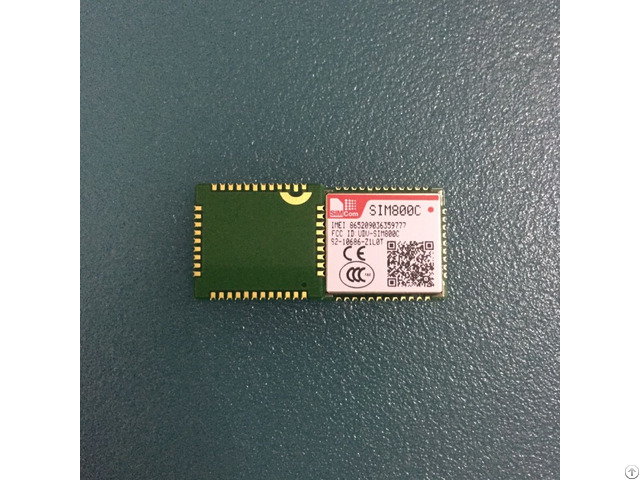

Simcom Sim800c 2g Gsm Gprs Module - China

SIM800C is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.

SIM800C supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.

With tiny size of 17.6*15.7*2.3mm, it can smoothly fit into slim and compact demands of customer design.

Smart Machine Smart Decision

General features

•Quad-band 850/900/1800/1900MHz

•GPRS multi-slot class 12/10

•GPRS mobile station class B

•Compliant to GSM phase 2/2+

–Class 4 (2 W @ 850/900MHz)

–Class 1 (1 W @ 1800/1900MHz)

•Dimensions: 17.6*15.7*2.3mm

•Weight: 1.3g

•Control via AT commands (3GPP TS 27.007, 27.005

and SIMCom enhanced AT Commands)

•Supply voltage range 3.4 ~ 4.4V

•Low power consumption

•Operation temperature: -40℃ ~85℃ Specifications for GPRS Data •GPRS class 12: max.

85.6 kbps (downlink/uplink)

•PBCCH support

•Coding schemes CS 1, 2, 3, 4

•PPP-stack

•USSD Specifications for SMS via GSM/GPRS •Point to point MO and MT

•SMS cell broadcast

•Text and PDU mode Software features •0710 MUX protocol

•Embedded TCP/UDP protocol

•FTP/HTTP

•MMS

•POP3/SMTP

•DTMF

•Jamming Detection

•Audio Record

•SSL

•Bluetooth 3.0(optional) Specifications for voice

•Tricodec –Half rate (HR) –Full rate (FR) –Enhanced Full rate (EFR) •Hands-free operation (Echo suppression) Interfaces 42 SMT pins including

•Analog audio interface

•RTC backup

•USB interface

•Serial interface

•Interface to external SIM 3V/1.8V

•GPIO

•ADC

•GSM Antenna pad

•Bluetooth Antenna pad Compatibility

•AT cellular command interface Certifications:

•CE

•FCC Certifications(ongoing):

•TA

•ROHS

•REACH *Enhance version support EAT and TTS_CN function
