Shot Bag Impact Testing Equipment - China

Test Equipment of Safety Glazing Materials in Buildings

Yuanchen supply all kinds of testing equipment for safety glazing materials and PV module.

All equipments design and produce according standard.

Ten Years Experience in Production and Processing

Stock Supply/Complete Set of Glass Testing Equipment

Major Suppliers of China's Market Safety Glass Testing Equipment

OEM/ODM/Development, Design and Processing of Various Testing Equipment Test Frame of impact Test for Safety Glazing Materials in Buildings Impact Test Frame Related Standards:

1) AS/NZS 2208 Safety glazing materials in buildings

Appendix D: Impact Test

2) GB 15763.3 Safety glazing materials in building Part 3: Laminated glass

Appendix C: Test device for the impact performance of shot bag

3) ANSI Z97.1 Safety Glazing Materials Used in Buildings

- Safety Performance Specifications and Methods of Test

Clause 5.1: Impact Test

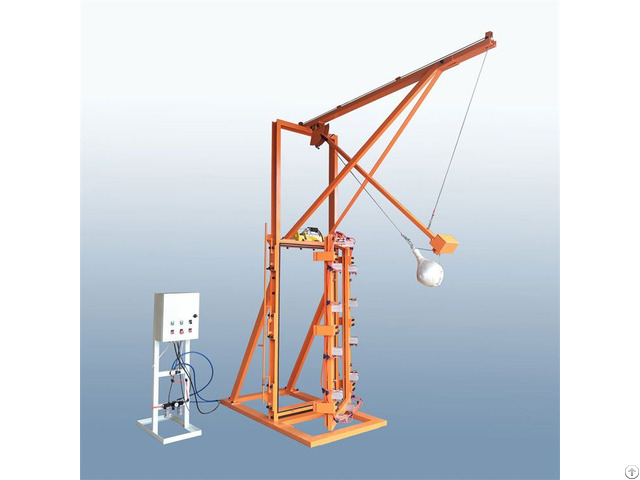

Impact Test Frame, Glass Impact Testing Device, Impact Frame For Sale Manufacturer

Application:

4) Determining the resistance of glazing materials to impact by the penetration method Test Frame:

5) Frame Size: 1900mm×1500mm×3570 mm

6) Samples Size: 1930mm×864mm

7) Lift: Electric

8) Release: Auto

9) Maximum impact height: 1200mm (customized)

10) Rubber Pad Width: 15mm

11) Rubber Pad Thickness: 3mm

12) Rubber Pad Hardness: Shore A50 Impact Shot Bag:

13) Reinforced leather bag filled with chiller lead shot Technical Data:

14) Weight: 45kg±0.1kg 46kg±0.1kg

15) Height: 330mm ± 13mm

16) Max diameter: 250mm

17) Leather thickness: 0.15mm

18) Lead sand size: 2.5mm

Customized: 25kg 48kg
