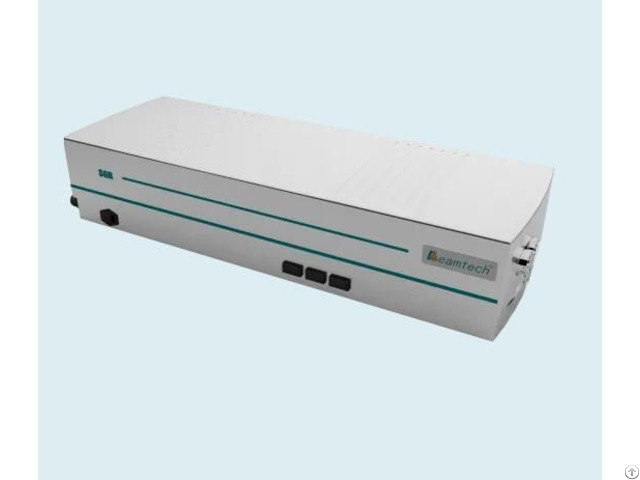

SGR High-Energy Q-Switched Nd: YAG Pulsed Laser

Beamtech SGR (Super-Gaussian Resonator) series Q-switched Nd: YAG lasers combine VRM (variable reflectivity mirror) and unstable resonator design creating a cavity with large TEM00 mode volume for high efficiency of excitation and energy extraction.

You can specify “flat-top-hat” with uniform energy distribution or “VRM Gaussian” profiles.

The Beamtech close-coupled diffuse pump chamber delivers uniform pumping to the laser rod for optimum lasing excitation efficiency and allows for higher stored energy by eliminating parasitic oscillations within the pump chamber.

The pump chamber uses chemically inert materials to withstand high pumping energy and absorb unwanted UV and IR radiation emitted by the flashlamps.

One or more amplifiers can be added to the oscillator for higher energy output.

With scientific or industrial grade models available, the SGR series will fit right in laser shock peening, LiDAR, plasma excitation, PLD, tokamak, laser flyer, laser-matter interaction, and as pump sources for dye lasers, OPO, and ultrafast Ti femtosecond lasers.

In terms of design, the SGR series High Energy Lasers features modular and engineered design to ensure product reliability and stability.

The power control cabinet is equipped with comprehensive external trigger connections and communication interfaces, facilitating synchronized system trigger control and remote control for users.

The SGR series places particular emphasis on safety and electromagnetic compatibility design, featuring protective shutters, built-in interlocks, flow switches, emergency stop switches, and enclosure protection.

Product Features

Pulse energy: 400mJ - 6J@1064nm

Multiple harmonics available (532/355/266nm optional)

Repetition rate up to 50 Hz

Quick lamp replacement design without optical path adjustment

Engineering technology ensures long-term stable operation

Single longitudinal mode seeding for narrow linewidth output available

Higher energy (>6J) available

Super-Gaussian beam profile
