Sg01l 18 Broadband Sic Based Uv Photodiode A = 1 0 Mm2 - China
price: check with company for price

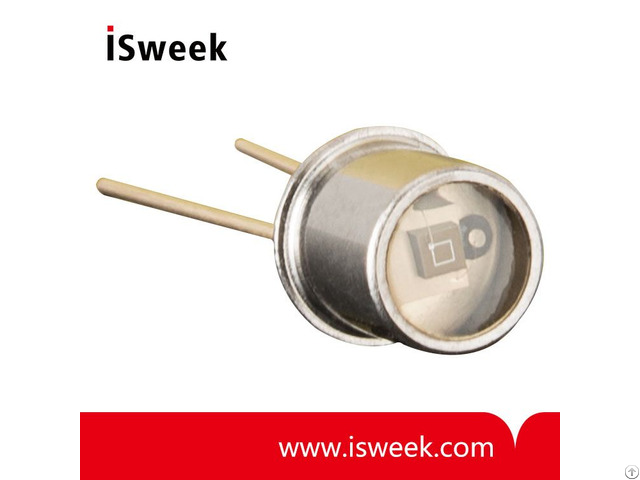

SG01L-18
Broadband SiC based UV photodiode A = 1.00 mm2
/
Properties of the SG01L-18 UV Photodiode
• Broadband UVA+UVB+UVC, PTB reported high chip stability
• Active Area A = 1.00 mm2
• TO18 hermetically sealed metal housing, 1 isolated pin and 1 case pin
• 10µW/cm2 peak radiation results a current of approx.
13 nA
/
SG01L-18 UV Photodiode Specifications Typical Responsivity at Peak Wavelength: 0.130/AW
Wavelength of max.
Spectral Responsivity: 280nm
Responsivity Range: 221 … 358nm Active Area: 1.00mm2
Dark Current (1V reverse bias): 3.3fA
Capacitance: 250pF
Short Circuit (10µW/cm2 at peak): 13nA
Temperature Coefficient : < 0.1%/K Operating Temperature: -55 … +170°C
Storage Temperature: -55 … +170°C
Soldering Temperature (3s): 260°C
Reverse Voltage: 20V
