Sf800 Low Pressure Flow Meter - China
price: check with company for price

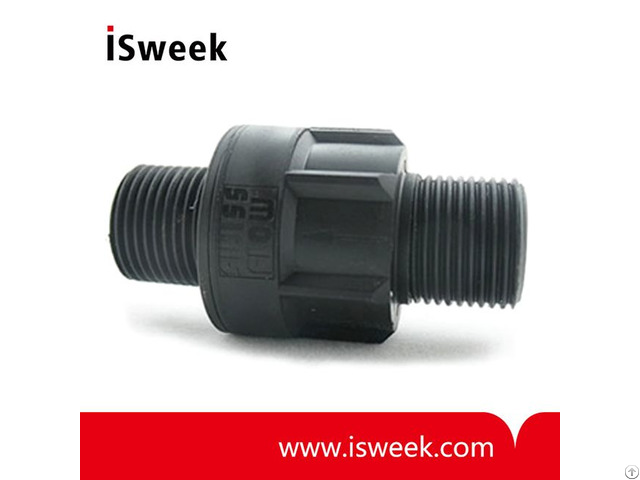

SF800 - Low Pressure Flow Meter
/
The patented SF800 is an all purpose flow meter with an excellent price-performance ratio.
It is suitable for a wide range of applications and large variety of fluids, and covers flow velocities of 0.5 to 20 liter per minute at temperatures of -20 to +90°C and an operating pressure of 16 bar (max 40 bar).
/
The SF800 is entirely made of high-quality plastics and composites with great chemical and thermal resilience.
The housing is made of PVDF, a high grade PVC, while the internal rotor of only 0.04 gram is made of Vectra, a liquid crystal polymer of very low weight.
Both material are not susceptible to limescale.
/
An integrated PCB emits the infrared signal, which is interrupted by the three blades of the rotor.
SMD components transform the interrupted signal into a pulse.
/
SF800 Low Pressure Flow Meter Specifications
• Flow velocity: 0.5 ~ 20 litre per minute • Temperature: -20 ~ +90 °C • Operating pressure: 16 bar • Max.
pressure: 40 bar • Power consumption: 12 - 36 mA/s • Material: PVDF, Vectra (rotor), Viton or EPDM • Output: frequencyPower consumption: 12 - 36 mA/s
