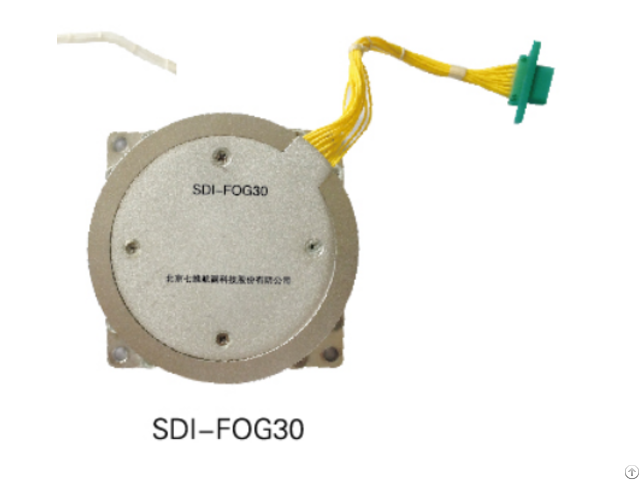

Sdi Fog 30 Fiber Optic Sensor For Inertial Navigation - China

SDI-FOG series, applied theory of digital closed-loop, is the Fiber-optic gyro product whose bias stability is 0.02 degree to 3 degree per hour.

It’s the first choice to proceeding high accuracy guidance and navigation controls.

Features:

 High-accuracy

 Rapid response

 Low cost

 Digital output

 Firm and Stable

 Anti-interference of electromagnetism

 Shock resistance

Performance:

Range: -300°~300°

The Number of axle: 1

Bias Stability: ≤0.1°~0.3°/h 1σ

Bias Repeatability: ≤0.3°/h 1σ

Bias Repeatability

(Total Temperature): ≤1.2°/h

Scale Factor Nonlinearity: ≤5×10-5

Scale Factor Repeatability: ≤5×10-5

Scale Factor Repeatability

(Total Temperature): ≤2×10-4

Angular Random Walk(°/√h): ≤0.02

Bandwidth(Hz): ≥100

MTBF: 20000h

Physical and Electrical:

Weight: ＜200g

Dimension: Ф70×32mm (including mounting hole)

Input Voltage: ±5v

Power Consumption: ≤3w

Starting Time: ＜1s

Communication Port: RS-422

Environment:

Operating Temperature: -40℃~+60℃

Vibration: 4.2g, 20~2000Hz

Bump, Acceleration: 70g, half-sine, 6ms
