Save Space Simple Structure Aluminium Winding Wire Pvc Power Cable - China

Wind power cable features and product categories

1 - Operating environment features:

Long-term operation outdoor, vertical suspension laying, frequent torsion (automatic yaw on wind), contact oil pollution (part), seawater corrosion (special environment).

2 - Requirements on cables:

High mechanical strength, torsion resistance (soft), shock resistance and oil resistance.

Also used in cold area of cable resistance to low temperature 40 ℃ (-).

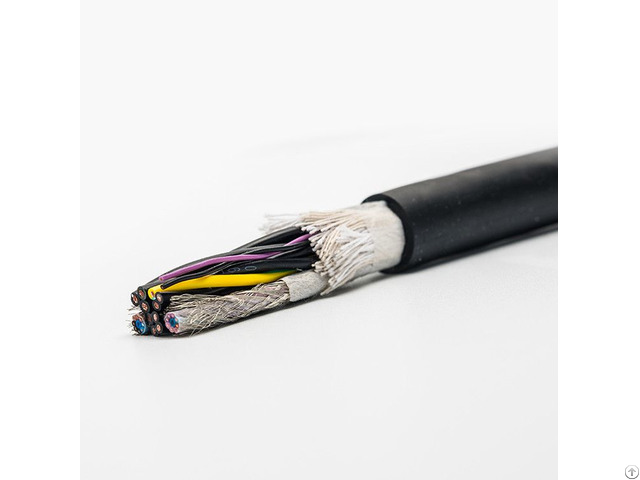

3 - Cable structure and material

Combined with the above characteristics, wind power cables are basically rubber type cables (at least used in the fans and the first tower barrel above), class 5 or class 6 conductors, EPR or silicon rubber insulation, neoprene, CPE or TPU sheath

4 - Cable applications

Interior of engine room, engine room and upper part of tower frame, lower part of tower frame to change position of bottom tank.

5 - Type of cable

Used in the engine room: flexible wire, control cable, data cable, towing cable (used in the rotor circuit), etc.

Inside the tower: wiring (lighting), power cable (fixed laying and torsion parts)

6 - The number of wind power cables applied in the fan

Take a 1.25mw fan (tower and engine room) as an example.

The height of tower is generally around 90 meters, so the number of force cables is about 1km in length.

For a wind field of 50, 000 kW, a force cable of 40km is required.

SHANGHAI HONGSHENG WIRE AND CABLE CO., LTD., located in no.

7, no.

4769, Jinqian High Way, Fengxian district, Shanghai, China, is a National High-tech Enterprise and the president enterprise of Shanghai wire and cable association.

Our company is a collection of professional research and development, design, production, sales of special wire and cable.

Company in line with to the science and technology as the first productive force, long-term commitment to three areas of research and management--building cable, new energy cable and Industrial equipment automation cable.

After years of development, in all areas of wires and cables have been widely recognized in the industry and good market reputation.

Company Contact:

• Posted By: Shanghai Hongsheng Wire and Cable Co Ltd

• Phone: 86-021-57599997

• Address: No. 4769, Jinqian High Way, Fengxian district, Shanghai,China, shanghai , shanghai , China

• Email:

• Website: http://en.shhsdl.com.cn

• Business Description: Contact person: Shirly Cao

  Phone: 18116035742

  Sky pe ：18116035742

  Website: http: //en.

  shhsdl.

  com.

  cn

  Company Description:

  SHANGHAI HONGSHENG WIRE AND CABLE CO., LTD., located in no.

  7, no.

  4769, Jinqian High Way, Fengxian district, Shanghai, China, is a National High-tech Enterprise and the president enterprise of Shanghai wire and cable association.

  Our company is a collection of professional research and development, design, production, sales of special wire and cable.

  Company in line with to the science and technology as the first productive force, long-term commitment to three areas of research and management--building cable, new energy cable and Industrial equipment automation cable.

  After years of development, in all areas of wires and cables have been widely recognized in the industry and good market reputation.

  So far, the company has a number of invention and utility model patents, has passed ISO9001 quality management system and 14001 environmental management system, 18001 occupational health and safety management system, China quality certification center CCC, CE, German TUV certification.

  Company's main products include: Flexible fireproof cables, Electrical automation control cable, Cable drag chain, Middle and low voltage power cable, PV cable, Charging pile cable, cloth wire and wind cable, and other series of thousands of varieties specifications.

  In addition, buyers can customize their own wires and cables according to their specific needs.
