S660 Series In Line Flat Surface Self Cleaning Ph And Orp Electrodes - China

S660 Series Flat-Surface, Self-Cleaning pH and ORP Electrodes

/

Item No: S660CD, S660CD-ORP, S661CD, S661CD-ORP, S662CD (also -LC, -HF versions), FC66P, FC66TC, FC67P, FC67TC, FC68P, FC68TC, S648, S653

/

S660 Series pH and ORP Electrodes Features

• Quick disconnect design saves time and money

• Installs in seconds, no tools necessary

• Flat-surface design resists coating

• Available with or without ATC elements

/

S660 Series pH and ORP Electrodes Description

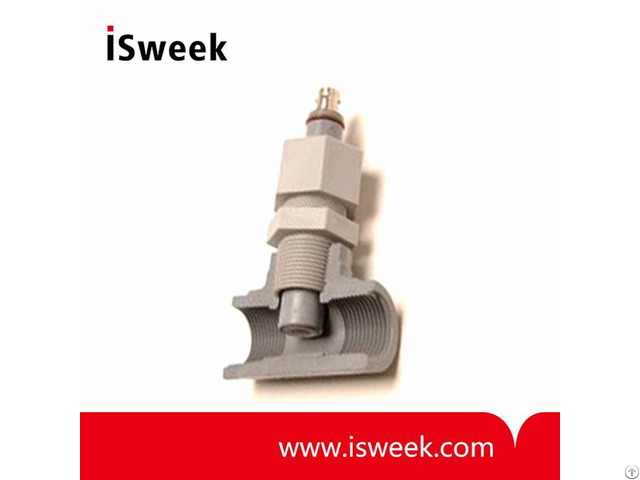

In-line mountings are ideal for replacing existing threaded electrodes.

They are useful in piping systems where flow can be shut off for electrode maintenance and where flow rates match the application’s needs; for example, turbulent flow is needed in self-cleaning applications.

a simple, reusable gland is used to mount the electrode.

electrodes, glands and flow cells are available to fit 3/4”, 1” and 2” lines.

Mounting hardware is available with or without aTC elements.

Choose from standard electrode models with HT gels, low ionic models and HF resistant models.

/

S660 Series pH and ORP Electrodes Specifications

Range: 0-14pH (0-12pH without na+ error) +/- 2000mV for ORP

• Temperature/Pressure Range: 0C* - 75C (0-100psig), 0C*-80C (0-85psig)

• Reference Type: ag/agCl, Sealed Double Junction

• Materia: 20% glass-filled polypropylene, gray color

• Cable Type: RG174 Coaxial cable with noise reduction layer (S653, S648), approx OD = .

120

• Material: Cap = CPVC, cable jacket = PVC

• Cable Type: FC66TC, FC67TC, FC68TC = RG174 coaxial cable x 1, 3 each PVC jacketed 20aWG wires, Red, blk, grn with Outer PVC jacket
