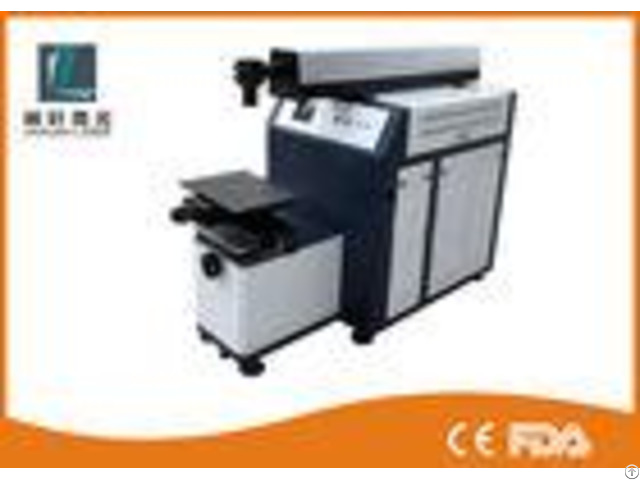

Robot Arm Laser Beam Welding Machine Galvanized Sheet Letters For Ad Letter - China
price: contact company for price
Robot Arm Galvanized Sheet Letters Laser Beam Welding Machine for AD Lette Introduction LX-D series laser welder was originally designed for mould industry for molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds, rubber molds, molds of digital products/mobile phone/toy/automobile/moto rcycle/etc.
By applying suitable soldering wires, it is possible to fill the crack or blowholes and reuse the mold which saves production cost and improves working efficiency significantly.
General laser mould welder also can be used in metal sheet stitching welding, pipe/ tube conjunction welding, and manufacturing of sensor, level switch and fine auto parts, etc.
Application This laser welding machine can not only be used for molds repairing/re-shaping, but also for the precision welding of small articles, such as jewelry, electronics, telecommunication devices, electrical hardware, watch and clocks components, products of military industry, etc.
Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc.
Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
Main Feature # Using advanced automatic light shielding system, eliminating the light stimulating to eyes # Small heat-affected zone, expertise and beautiful welding spot, without excessive handling after welding # Multiple observing system # Soft laser beam for best molten pool # User friendly digital message display for easy control Techinical Parameters - - - -
Max.
laser average power | 300W 400W | Laser peak value power | 5KW | Laser wave length | 1064nm | Max.
single pulse energy | 120J | Pulse width | 0.3-20ms | Welding frequency | 0.5-100HZ | Cooling Mode | Water-cooling | Welding Spot size | 0.2-2mm | Welding depth | 0.1-3.5mm | Laser welding wire | 0.2-0.8mm | Max.
welding position | 500*1000mm | Laser control mode | Electromotion | Power consumpted | 11KW | Electrical demand | 380V / 60A | Positioning | Microscope(Optional CCD) | Laser working area | 200*200*300mm | Usage environment | Clean, no shaking, Temperature 13-28, humidity 5%-75% | - - - -
Company Contact:
- Posted By: Wuhan Linxuan Laser Co., Ltd
- Phone: 86-27-87436808
- Address: ROOM 601,NO. 20 BUILDI NG,GUANGGU NEW POWER I NDUSTRIAL PARK,GUANGGU SECOND ROAD NO.219,JIAN GXIA DISTR, WUHAN , hubei , China
- Email:
Published date: May 3, 2018
- Business Description: Wuhan Linxuan Laser Co., Ltd is a high-tech enterprise in Wuhan East Lake Development Zone , we are specializing in producing, developing and selling laser marking machine, laser welding machine, laser cutting machine, etc.
It is Chinese industrial laser processing equipment pioneer.
