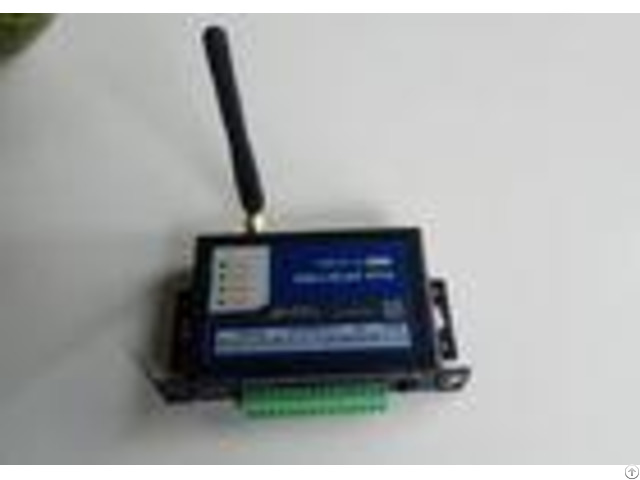

Realtime Monitoring Iot Data Logger Wireless Gsm Gprs Interlock Programming - China

GSM GPRS IOT data logger, wireless realtime data monitoring System Feature # Adopted highly integrated industrial 32-bit ARM MCU # 247 working, soft and hardware Double watchdog # Support signal fileter # Support automatic network reconnection and data re-send # Automatically or manually update interior clock by sms or NTP or server # Configurable action schedule(second, minute, day, week, month) # Support Interlock programming, Event trigger # Provide console utility for visual programming over 100 parameters # Optional inside lithium battery for power lost alarm and keep 8-20 hours working DI feature # Trigger dry contact(NO or NC) DO(T) feature # Open-collector output(drive voltage=power supply voltage, Drive current500mA) # on/off/pulse DO by remote control or local event # Remain down status when power lost DO(K) feature # Relay NO output(load: 2A / 125VAC, 220VDC) # Remote or local event activate DO on/off/pulse # Remain down status when power lost AI feature # Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision) # Convert signal to actual measure value, support adjustment # Support offset and gain, alarm parameters, upload data setting # Detect connect or disconnect to alarm SMS feature # Preset 10 phone numbers (support distribute authority to receive sms) # Send sms alarm when input is triggered or reach alarm level # Editable alarm and recover sms with time stamp # Remote get device status or value by sending sms command # Activate output by sending sms # Configurable schedule for sms report IO channel's status or value # Sending sms command to update setting # Sms remind for sim card overdue # Support power lost sms alarm and recover sms(works with inside battery) # Wireless network communication # Option network: cellular(2g/3g/4g) or Wi-Fi # Support TCP/IP two-way communication with Max.

4 servers(IP or domain) # Automatically Upload data when alarm or according to schedule # Communication protocol: Modbus TCP, http post, Cwt_IO(two-way communication) # Transfer RS485 or RS232 Data to wireless network
