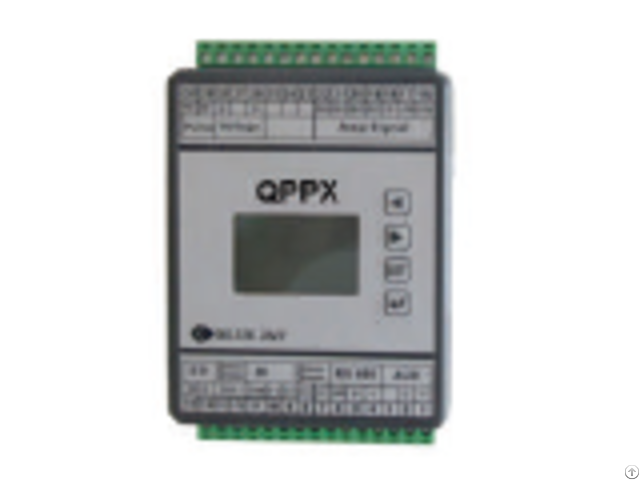

QPPX

AC Programmable Transducer

Three phase for DIN mounting

AC programmable transducer measures a

wide range of electrical parameters and

generates analog or digital output signals

suitable for interfacing with instrumentation

and control systems.

Total four channel

output, with panel key or PC control

programmable, user can free to set 4

different data from max 26 electrical

parameter for sampling and analog signal

output.

Have three channel digital inputs and

optional RS485-Modbus communication

functionality.

Can monitor the galvanically

isolated DI signal and programmed the

transducer with customized SCADA software.

Any of the measured parameters can be read

out via the optional RS485-Modbus

connection.

·Input three phase AC grid parameter:

5A(100V) / 1A(100V) / 5A(400V) / 1A(400V)

·Output: 4-20mA/0-20mA; 0-5V/0-10V optional

·85~265VAC/380VAC wide voltage AUX for most

country and application

·With 4 channel output (support max 22 types

parameter for analog output)

·Front panel with 4 keypad for analog parameter

configuration, do not need back ground

software.

·With RS 485 port for remote electrical data

·500ms response time

·0.5 measurement accuracy

·35mm Din rail mounting

·Advanced electrical parameter ready optional

·SOE function optional

Technical characteristics

P-25 P-26

Nominal input 1 or 5 Amp C.T. connected

110V, 230V, 240V, 400V, 415V ac +/-20%

<1 VA voltage

<0.2 VA current

1.2 times continuous

10 times /5s for current

2 times / 2sec for voltage

Frequency range 40~65Hz

Standard outputs

4~20mA/ 0-20mA programmable

(0~5V / 0~10V optional)

Maximum load

<390 Ω (current output)

>10KΩ (voltage output)

Ripple <1% peak to peak

<350ms 0-90%

<500ms 0-99%

Class 0.2% / 0.5 complying with IEC 688

Accurate range 0 - 120% I

Frequency influence <0.05% per Hz

Load influence <0.25% of full span for specific load range

85~265V AC/DC 20%, 1.5VA

Test voltage 2KV RMS 50Hz for 1 minute

impulse 4KV 1.2/50μsec waveform

Operating -10~55C

Storage -40~70C, 20 ~ 93%RH ; Noncondensing
