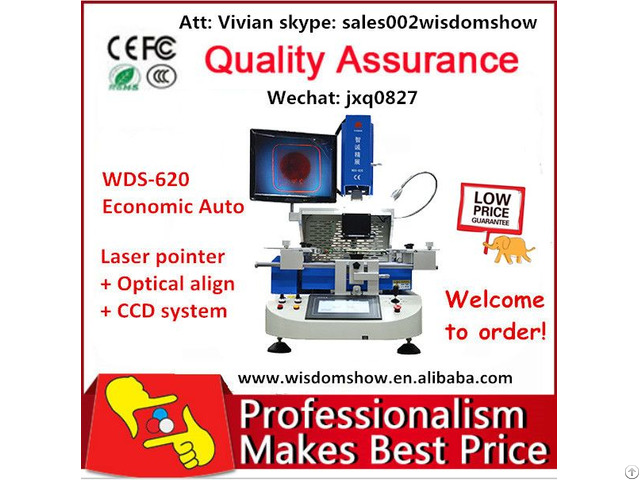

Ps4 Chips Reballing Machine Wds 620 With Optical Alignment System Made In China - China

WDS-620 BGA rework station Technology parameter

1 Power supply AC 110V/220V±10% 50/60Hz

2 Total power Max 5300W

3 Heater power Upper temp.

zone 1200W, second temp.

zone 1200W, IR temp.

zone 2700W

4 Electrical material Driving motor+ smart temp.

controller+color touch screen

5 Temperature controlling (high precision K-sensor)(Closed Loop), independent temp.

controller, the precision can reach ±1degree

6 Locating way V shape slot, PCB support jigs can adjust, laser light do fast centering and position

7 PCB size Max 400*390mm Min 10*10 mm

8 Applicable chips Max 80*80mm Min 1*1 mm

9 Overall dimension L650*W630*H850mm

10 Temperature Interface 1 pcs

11 Weight of machine 60KG

12 Color Blue

WDS-620 automatic BGA Rework Station Main features:

1 - Built-in infrared laser position, fast positioning for PCB.

2 - Nozzle, equiped with many size nozzles, which also can be customized.

3 - Three temperature zones independently,

4 - With a powerful cross-flow and one external temp sensor socket

5 - High sensitive touch screen, Panasonic PLC control.

6 - HD vision CCD camera, good for bga mounting.

Our advantages:

1 - High quality of our products;

2 - Competitive and fair price;

3 - Good quality service;

4 - Healthy, convenient and multi-function of our products;

5.100% QC inspection before shipment;

6 - One years' warranty.

Company Contact:

• Posted By: Shenzhen Wisdomshow Technology Co.,Ltd.

• Phone: 86 137-1412-9564

• Address: Building B,No.6 Haosi Western Industrial Park, Shajing Town, Bao'an District, , Shenzhen , Guangdong , China

• Email:

• Website: http://www.wdsbga.com/

• Business Description: Shenzhen WisdomshowTechnology Co., Ltd specializes in BGA Rework Station for nearly seven years and enjoy high reputation in the worldwide

  market.

  We mainly produce and distribute BGA reballing station, Hot air BGA rework station, Infrared BGA rework station, laptop motherboard repair machine, BGA chip repair machine, and other relative chip level repair tools, like BGA reballing kit, stencils, flux paste, solder ball, BGA preheaters, etc.
