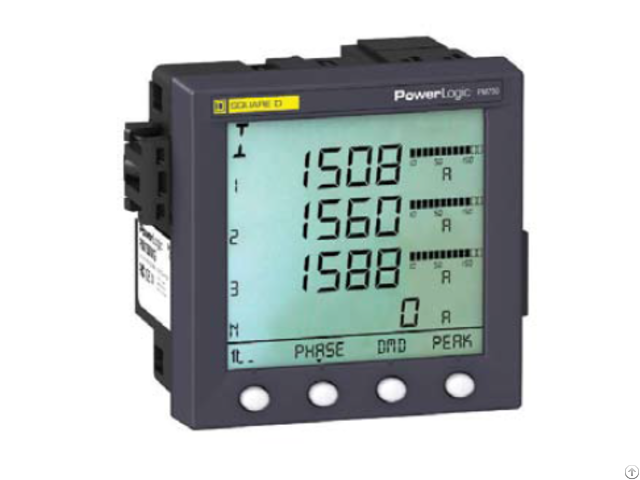

Powerlogic Pm710 Pm750 Power And Energy Meters - China

Applications summary

Cost-effective metering

Easily mounted without tools (just two clips) and with a mounting depth

of only 50mm, these cost effective and highly accurate power meters are

ideal for OEMs and panel builders.

The meters support direct connection

up to 480 V AC Ph-Ph and seamlessly integrate with PowerLogic® energy

management systems.

Their high-accuracy power, energy, and demand

measurements can be used for bill verification, monitoring backup power

for critical systems, and cost effective energy management solutions.

Remote monitoring and control

Get early warning of impending problems that could lead to equipment

malfunctions or downtime.

Diagnose and isolate the cause of powerrelated

equipment or process problems.

The PM750 features 15 userconfigurable

alarms for the most prevelant over and under conditions

common in most power systems.

Combine any of the PM750’s I/Os

with these alarms and communicate through its 2-wire RS-485 port for

remote monitoring and control capabilities for greater control over the

performance and overall health of your systems.

Perfect for demand

control applications.

Sub-billing and cost allocation

Perfect for monitoring right down to the tool level, the PM700 series

meters can help monitor cost centers, identify opportunities for demand

control, and check energy consumption patterns.

Features summary

Cost-effective

Simple retrofit

Low initial investment

Ease of use

Fast setup via display or software

Compatible with entry-level PowerView™ software

Bright, easy to read LCD display

High accuracy metering

PM710: Real Energy IEC 62053-21

ANSI C12.16 - 1.0 Accuracy Class

PM750 - Real Energy IEC 62053-22

ANSI C12.20 - 0.5 Accuracy Class

Communications

RS-485 port (PM710, PM750)

Modbus® protocol for integration with energy management systems

Energy management systems

Modbus compatible, ready to use with PowerLogic® PowerView™

and System Manager Software, Tenant Metering Software

(TMS) and PowerLogic® ION® Enterprise Software

Pulse outputs

1 output (PM750) for kWh-pulsing, alarm

status, or external controlled output

Pulse inputs

2 inputs (PM750) for status, alarms or demand input synchronization

Patented technology

An architecture that uniquely addresses

monitoring and control applications

Adapts to changing needs, avoiding obsolescence
