Power Relay S2eb 24v - India

price: check with company for price

Power Relay S2eb 24v

Products Photos Catalog Power Relay S2eb 24v Photos Catalog

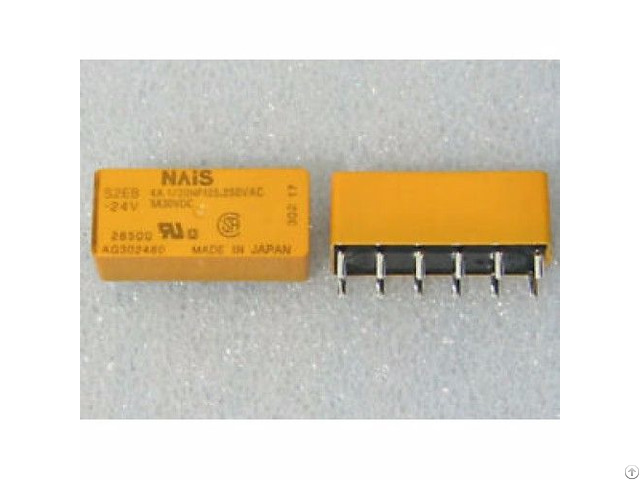

4A 24VDC 2P-NO 2P-NC PCB Power Relay - S2EB-24V

FEATURES: -

• The variety of contact arrangements 2 Form A 2 Form B, 3 Form A 1 Form B, 4 Form A

• Latching types available

• High sensitivity in small size 100 mW pick-up and 200 mW nominal operating power

• High shock and vibration resistance Shock: 50 G Vibration: 10 to 55 Hz at double amplitude of 3 mm .

118 inch

• Wide switching range From 100µA 100 mV DC to 4 A 250 V AC

• Low thermal electromotive force Approx.

3 µV

• Dual-In-Line packaging arrangement

• Amber types available

APPLICATION: -

Telecommunications equipment, data processing equipment, facsimiles, alarm equipment, measuring equipment.

DESCRIPTION: -

Standard Package 50

Category Relays

Family Power Relays, Over 2 Amps

Series S

Packaging Tube

Relay Type General Purpose

Coil Type Non Latching

Coil Current 8.4mA

Coil Voltage 24VDC

Contact Form 4PST (2 Form A, 2 Form B)

Contact Rating (Current) 4A

Switching Voltage 250VAC, 48VDC - Max

Turn On Voltage (Max) 16.8 VDC

Turn Off Voltage (Min) 2.4 VDC

Operate Time 15ms

Release Time 10ms

Features Sealed - Amber

Mounting Type Through Hole

Termination Style PC Pin

Contact Material Silver Alloy, Cadmium Free

Coil Power 202 mW

Coil Resistance 2.85 kOhms

Operating Temperature -55°C ~ 65°C

Online Catalog S Series

POPULAR PRODUCTS: - 5V Power relays, 5 pin power relay, PCB 12V relay, 5 amp power relay, 24v pcb relay, DPDT PCB relay, SPST pcb relay, pcb relay nais, Panasonic pcb mounted relay, pcb mount relays, Panasonic 5a pcb mounting relay, general purpose small size relay, relay for lighting applications, switching relay, dc pcb relay, Panasonic 10a pcb relays etc.


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India

  • Email: Email
