Plc Socket - China

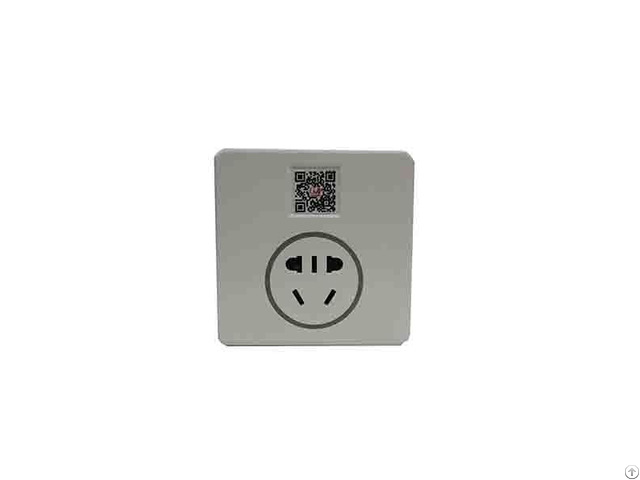

1 - Brief Introduction ZQ0B5001 is a cost-effective intelligent socket .

It could support bluetooth and PLC communication, Which can achieve reading data remotely with concentrator.

According to the design of standard type 86, it has the characteristics of small size, light weight, beautiful appearance and easy installation.

2 - Technical Parameter 2.1 smart socket meter Function

plc Socket wholesale could support bluetooth and PLC communication.

The mobile APP can connect socket via bluetooth to read and use energy data .

It could upload data directly/save date to sever via PLC concentrator .

It could measure active /reactive energy, current, voltage, active power, reactive power, apparent power, frequency, power factor.

plc Socket manufacturer could collect current, voltage, starting current waveforms, and detect harmonic content of current and voltage .

It has bulit-in 10A control relay .

2.2 Technical Parameters Rated voltage 220V

Current 2(10)A

Accuracy class Class 1

Standard IEC62052-11, IEC62053-21

Frequency 50-60Hz

Pulse constant 3200Imp/kWh

Power consumption ≤10VA ≤1W

Starting current 0.002Ib

Temperature range -20～70℃

Average relative humidity 75%

Max.

value 95%
