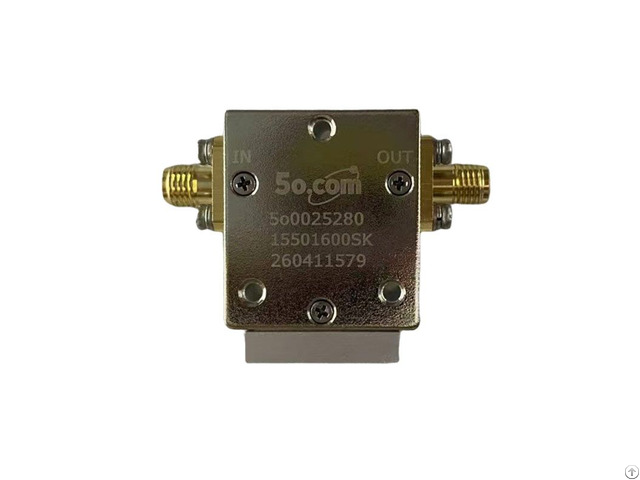

Passive Device L Band 1550 To 1600mhz Rf Coaxial Isolator - China

Professional L Band RF coaxial passive isolator covering 1550 to 1600MHz.

Features low insertion loss, high isolation, superior PIM performance, ideal for radio frequency communication, base station and signal transmission applications.

Model Number: 5o002528015501600S K

Frequency Range: 1550~1600MHz

Insertion Loss: 0.3dB

Isolation: 20dB

VSWR: 1.2

Forward Power;100W

Reverse Power: 30W

Temperature: -40~+85℃

Dimension：25.4*28*14 mm 5o.

com is a modern high-tech enterprise specializing in the research, development, production, and sales of RF microwave passive components.

Focusing on independent innovation, the company primarily manufactures microwave passive components such as RF isolators, circulators, coaxial loads (terminals), coaxial attenuators, power splitters, waveguide-to-coaxial converters, directional couplers, filters, and duplexers/multiplexers.

These products are widely used in 5G communications, satellite navigation, radar electronic countermeasures, and aerospace applications.
