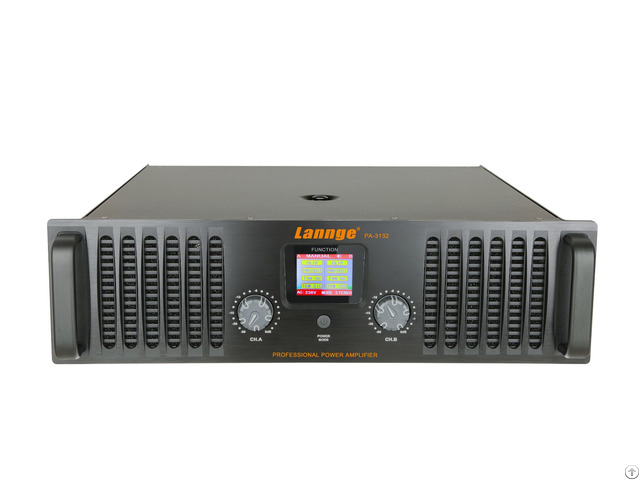

Pa 3132 3u Class H Professional Power Amplifier 2 1300w At 8 Honm - China

MAIN FEATURE

1 - Splendid color display, display the overload protection, current speed gears of fan, audio signal, voltage of AC, connection mode.

2 - Brushed aluminum front panel with unique streamline design.

3 - Perfect dynamic, comprehensive current limit, overload and chopped protection.

4 - Intelligent-controlling fan for radiating.

5 - Perfectly combine H technology and topology.

6 - AI insert and SMT automatical technique for strict control the consistency of the products.

7 - Adopt A class standard steel disc and fine copper high-powered toroidal transformer to achieve driving bass, mellow alto and clear treble.

8 - Adopt original high-powered enthusiast Toshiba audio tube.

9 - With USA branded twin tube, circuits is optimized to perfection.

TECHNICAL SPECIFICATIONS

RMS 8Ω/STEREO: 1300W+1300W

20Hz-20KHz 4Ω/STEREO: 1900W+1900W

THD+N 0.1% 8Ω/BRIDGE: 3800W

Frequency Response ref 1k20Hz-20KHz: ±0.2dB

THD+N : < 0.1%

SNR: 102dB

Damping Factor: >200

SR : >20V/μs

Gain RL 8Ω : 42dB

Input Impedance : balance 20K / unbalance 10K

Output Circuitry: 3-tier Class H

AC Power : AC220V / 50Hz±10%

Amplifier and Load Protection : Soft boot, DC, short circuit, over load, overheat, Clipping distortion

Input CONNECTORS : Female XLR Type/ Male XLR Type

Output CONNECTORS: NL4 Speakon socket, Binding post

Controls and LEDs—Rear Panel: Stereo, Splice, Bridging option switch, Bridging incicator, Sensitivity option switch, Grounding switch, 30Hz HI-PASS switch.

Cooling mode: Stepless automatic transmission cooling fan.
