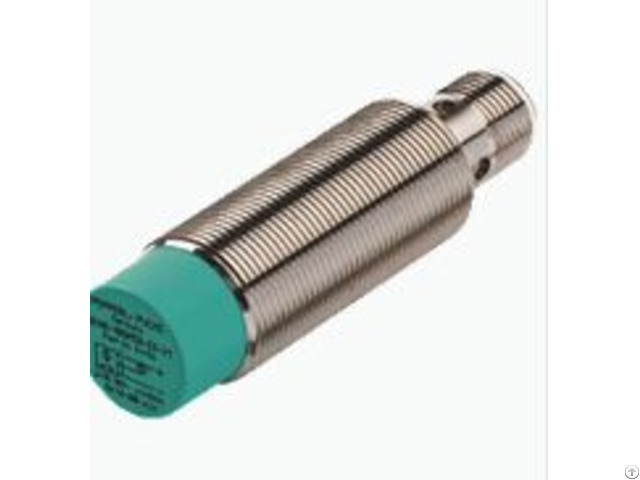

P F Inductive Sensor Nbn8 12gm50 E2 - Germany

General specifications

Switching element function PNP NO

Rated operating distance 8 mm

Installation non-flush

Output polarity DC

Assured operating distance 0 .

6.48 mm

Reduction factor rAl 0.39

Reduction factor rCu 0.3

Reduction factor r304 0.7

Reduction factor rBrass 0.45

Nominal ratings

Operating voltage 10 .

30 V

Switching frequency 0 .

1500 Hz

Hysteresis typ.

5%

Reverse polarity protection reverse polarity protected

Short-circuit protection pulsing

Voltage drop ≤ 3 V

Operating current 0 .

200 mA

No-load supply current ≤ 16 mA

Switching state indicator all direction LED, yellow

Functional safety related parameters

MTTFd 1560 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Approvals and certificates

UL approval cULus Listed, General Purpose

CSA approval cCSAus Listed, General Purpose

CCC approval CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature -25 .

70 °C (-13 .

158 °F)
