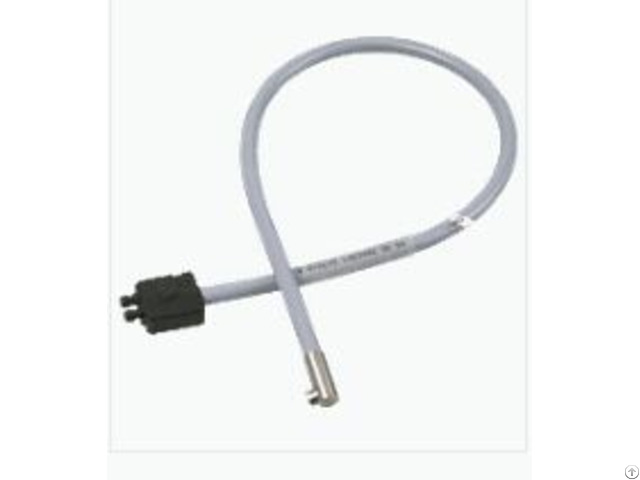

P F Glass Fiber Opticllr 04 - Germany
price: contact company for price
General specifications
Fiber optic length 500 mm
Fiber optic diameter 7.3 mm
Adapter form 04
End piece thread
Bending radius min.
20 mm
Fiber bundle diameter 1.6 mm
optical face: 2 mm2
Fiber configuration optical seperated
Angle of divergence approx.
68 °
Approvals and certificates
Approvals CE
Ambient conditions
Ambient temperature -20 .
85 °C (-4 .
185 °F) [Adapter]
-40 .
180 °C (-40 .
356 °F) [End head and Covering]
Storage temperature -20 .
85 °C (-4 .
185 °F)
Mechanical specifications
Degree of protection IP65
Material
Optical face glass
Sheathing Metal-silicon
Core Glass fiber
End piece Stainless steel 1.4305 / AISI 303
Adapter PVC
Extraction force at probe at 20°C: 120 N
Company Contact:
- Posted By: Ralph Messring GmbH
- Phone: 0611 988 17088
- Address: Sonnenberger Strasse 52, Darmstadt , Wiesbaden , Germany
- Email:
- Website: http://www.ralphmessring.de
Published date: September 28, 2016
- Business Description: Our competitive brands are:
E+H, VEGA, MTL, P+F, KOBOLD, GEMU, FOXBORO(ECKARDT), GESTRA, BALLUFF, R.
STAHL, ROSEMOUNT, ControlAir, SIEMENS.
Ralph Messring GmbH specializes in global sales and distribution of industrial equipment and supplies, our products mainly focus on industrial automation and process instrumentation, e.
g pressure and temperature measurement, flow devices and automation controls components, oilfield equipment, safety products, industrial consumables and etc.
Our goal is to provide our customers with the best products and solution services, at rapid time offering reasonable and competitive price, rapid delivery and convenient order processing.
We have many reliable European Manufacturers as our partners and backup force to serve you the products you know and trust, and we have hundreds of customers at hand generate everyday large purchase demands.
What you only need is to give us a chance to serve you!
