O2s Fr T4 4p Flange Zirconium Dioxide Oxygen Sensor - China
price: check with company for price
Zirconia O2 Sensors
Flange Mounted Series
/

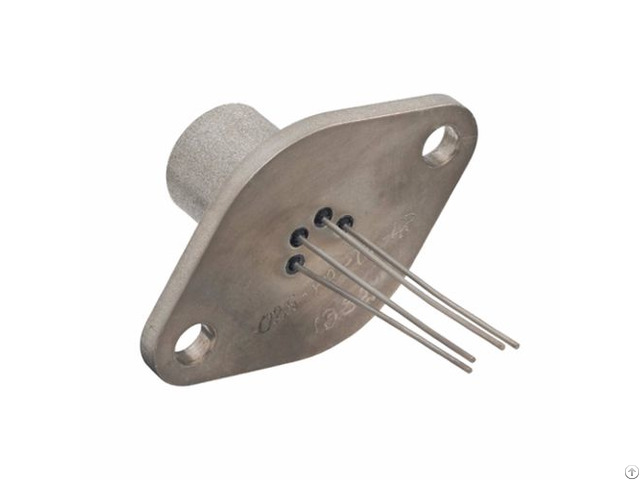

The Flange Mount Zirconium Dioxide Oxygen Sensor is designed for easy sealing into a manifold or sampling chamber.
Favoured by SST’s aerospace customers and in applications that require high temperature and pressure operation.
/
FEATURES
• Zirconium dioxide (ZrO2) sensing elements
• Long life, non-depleting technology
• Integral heating element
• High accuracy
• Requires an external interface board to operate
/
BENEFITS
• No reference gas required
• No need for temperature stabilisation
• Flange mounting
/
TECHNICAL SPECIFICATIONS
Heater voltage Operating: 4.35VDC ± 0.1VDC (1.85A) Standby: 2VDC (0.85A)
Pump impedance at 700°C: < 6kΩ
Permissible gas temperature: -100°C to +400°C
Gas flow rate: 0 - 10 m/s
Repetitive permissible acceleration : 5g
Incidental permissible acceleration: 30g
/
OUTPUT VALUES
Oxygen pressure range: 2mbar - 3bar max
Accuracy: 5mbar max
Internal operational temp: 700°C
Response time (10 - 90% step): < 4s
Warm up time (prior to sensor operation): 60s
Warm up time (from standby): 20s
Output stabilisation time: ~ 180s
