NOV Brandt VSM300 Composite Sand Vibrating Screen for solids control system 1: Description NOV Brandt VSM300 Composite Sand Vibrating Screen for solids control system.

The new and improved DURAFLO composite replacement screen for the Brandt VSM 300 brand shaker uses a new frame design that is lighter and more easily repaired and promotes longer screen life.

It is easier to remove than the original DURAFLO composite screens.

DURAFLO composite screens are available with TBC, Ultra Fine (XL), and XR MESH.

DURAFLO composite screen technology effectively eliminates the inherent performance-limiting problems of conventional metal frames, including rusting, delamination and a heavier and reduced processing area.

DURAFLO composite screens have as much as twice the functional life of screens mounted on metal and can handle appreciably higher throughput capacity.

2: Specifications - - - - Product name | NOV Brandt VSM300 Composite Sand Vibrating Screen for solids control system | Wire mesh material | SS304 SS316 or customized as customers demands | Size | 885 x 686 mm | Weight | 10 kgs | Screen layers | 2 or 3 layers | Mesh count | 20-325mesh | Quality standard | Corrosion-resisting, heat-resisting, wear-resisting long working life, higher flow rate easy disassembly, rating of temperature, good performance conductivity (powder) liquid, trapping (dreg) effect is good current design, technical expertise API compliant shaker screens | - - - - 3: Main feature as follows 1) These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together.

because of different mesh size and hole size, get an better filtering effect.

2) The bottom high strength steel frame, supporting bar with the moderate tension screen cloth, combined together, infinitely enhance the screen intensity and endurance, get an better fiteringeffective.

Mesh sizes ranging from 20 to 325, specially customized.

3) Steel backing plate forms usually include hexagonal, rectangular, square, diamond and so on.

the whole cloth is divided into independent small surfaces, prevent the part excessive expansion damaged with a special rubber plug together to repair damage, can save the time to replace the screen, Increase the efficiency and reduce the cost.

4: Application Widely used in petroleum drilling machine.

Especially, it is the important fitting of drilling slurry purified equipment; for acid, alkali conditions screening and filtering;used as Mud network for the oil industry, chemical fiber industry for filter screen, electroplate industry to make pickling network, etc.

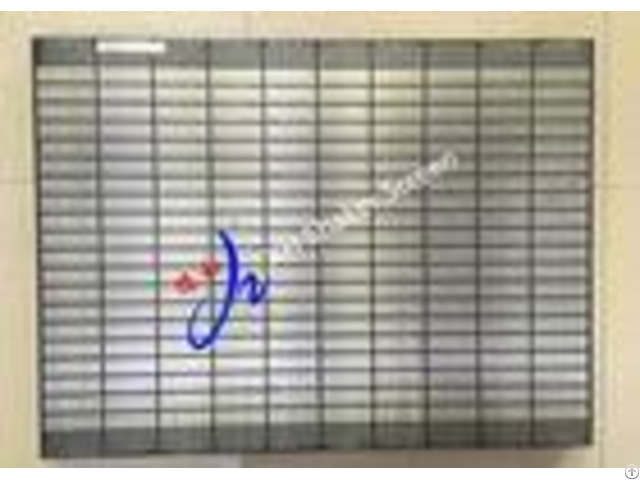

5: Pictures
