Nov Brandt King Cobra Steel Frame Shaker Screen Mesh For Oil Drilling Fluids - China

NOV Brandt King Cobra Steel Frame Shaker Screen for oil drilling fluids service 1: Description NOV Brandt King Cobra Steel Frame Shaker Screen for oil drilling fluids service.

Steel frame screen is in common used presently, that are constructed mostly with two or three stainless steel layers bonded tightly to the steel frame.

The frame is made up of the high-strength square steel tube or flat steel welded to multi- ribbed construction.

These layers are coupled with the frame through metal backing plate or bonded straightly as well.

We possess the strong experience and the ripe technology, and will provide various specifications of steel frame screens to serve the clients' demands.

2: Application Shale shaker screen widely used in petroleum drilling machine, solids control equipment, desander, desilter and so on.

Especially, it is the important fitting of drilling slurry purified equipment.

For acid, alkali conditions screening and filtering.

Used as Mud network for the oil industry, chemical fiber industry for filter screen, electroplate industry to make pickling network, etc.

3: Specifications - - - - Product name | NOV Brandt King Cobra Steel Frame Shaker Screen for oil drilling fluids service | Wire mesh material | SS304 SS316 or customized as customers demands | Size | 1251 x 635 mm | Weight | 14 kgs | Screen layers | 2 or 3 layers | Mesh count | 20-325mesh | - - - - 4: Features of Steel frame screen 1) Different layers with different density.

To arrange these layers reasonably and exactly, the screening effect will become more and better.

2) High strength frame, multi-ribs and the mesh cloth with moderate tension, from one reliable combination, which can increase screens acceptable flow, the intensity and the lifetime 3) The mesh divided into many independent small units by grids of the backing plate, can prevent rips or tears from spreading overmuch.

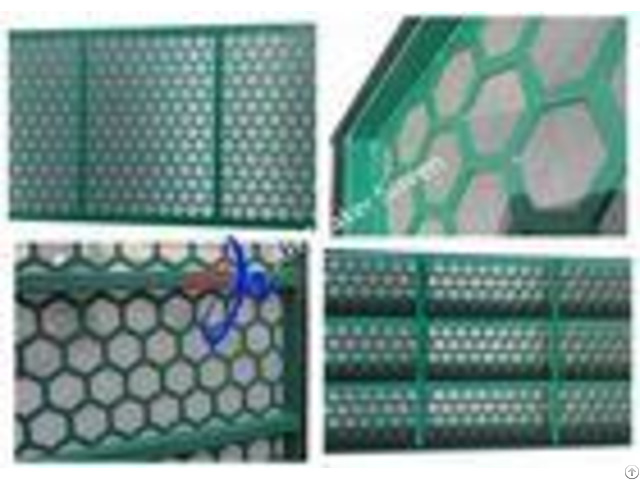

Accessory prepared rubber stoppers 5: Pictures
