No A1 Nitric Oxide Sensor - China

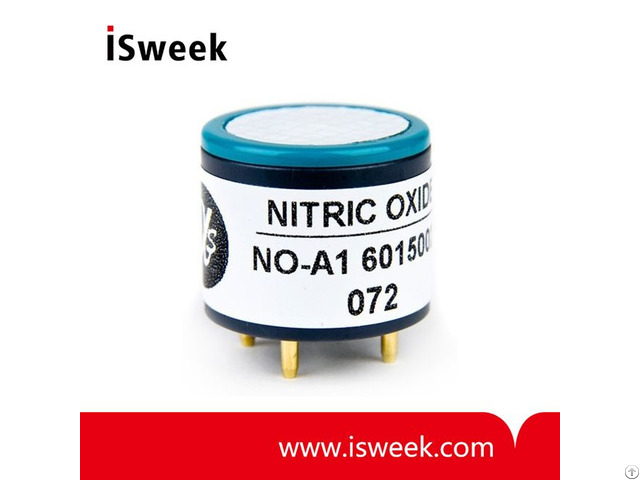

NO-A1 Nitric Oxide Sensor (NO Sensor) Description

Alphasense Nitric Oxide gas sensors operate using proven fuel cell technology.

/

NO-A1 Nitric Oxide Sensor size:

20mm diameter, the industry standard size for portable gas detectors

/

The NO range provides OEMs with reliable sensors for use in a number of high volume applications.

Strong signal levels combined with low zero current allows resolution to 200 parts per billion (ppb) whilst giving linear outputs to as high as 250ppm.

The sensors are suitable for inclusion in fixed installation sensing heads, portable safety instruments, urban air monitoring and stack gas analysers.

/

Alphasense NO sensors provide a significant improvement in stability of response to transient relative humidity changes.

/

The NO sensors offer our electrolyte leak-free guarantee and reliable long-term detection performance.

The leakproof housing is moulded with a colour coded top for ease of identification.

/

NO-A1 Nitric Oxide Sensor NO sensor Specifications

• Range: 250 ppm NO limit of performance warranty

• Sensitivity: 320 to 480 nA/ppm in 50ppm NO

• Response time t90: < 45s from zero to 50ppm NO

• Resolution: < 0.2 RMS noise (ppm equivalent)

• Temperature range: -30 to 50°C

• Pressure range: 80 to 120 kPa

• Humidity range: 15 to 90 % rh continuous

• Weight: < 6 g

/

Matched Transmitter board for NO-A1 NO Sensor

4-20mA Digital Transmitter Board • Factory calibration, custom-set for immediate use • Digital zero, sensitivity and temperature compensation • Digital and 4-20mA output • Biased or unbiased operation • Calibration and range change
